AA1752HB-AW（AA1752HB-AT）

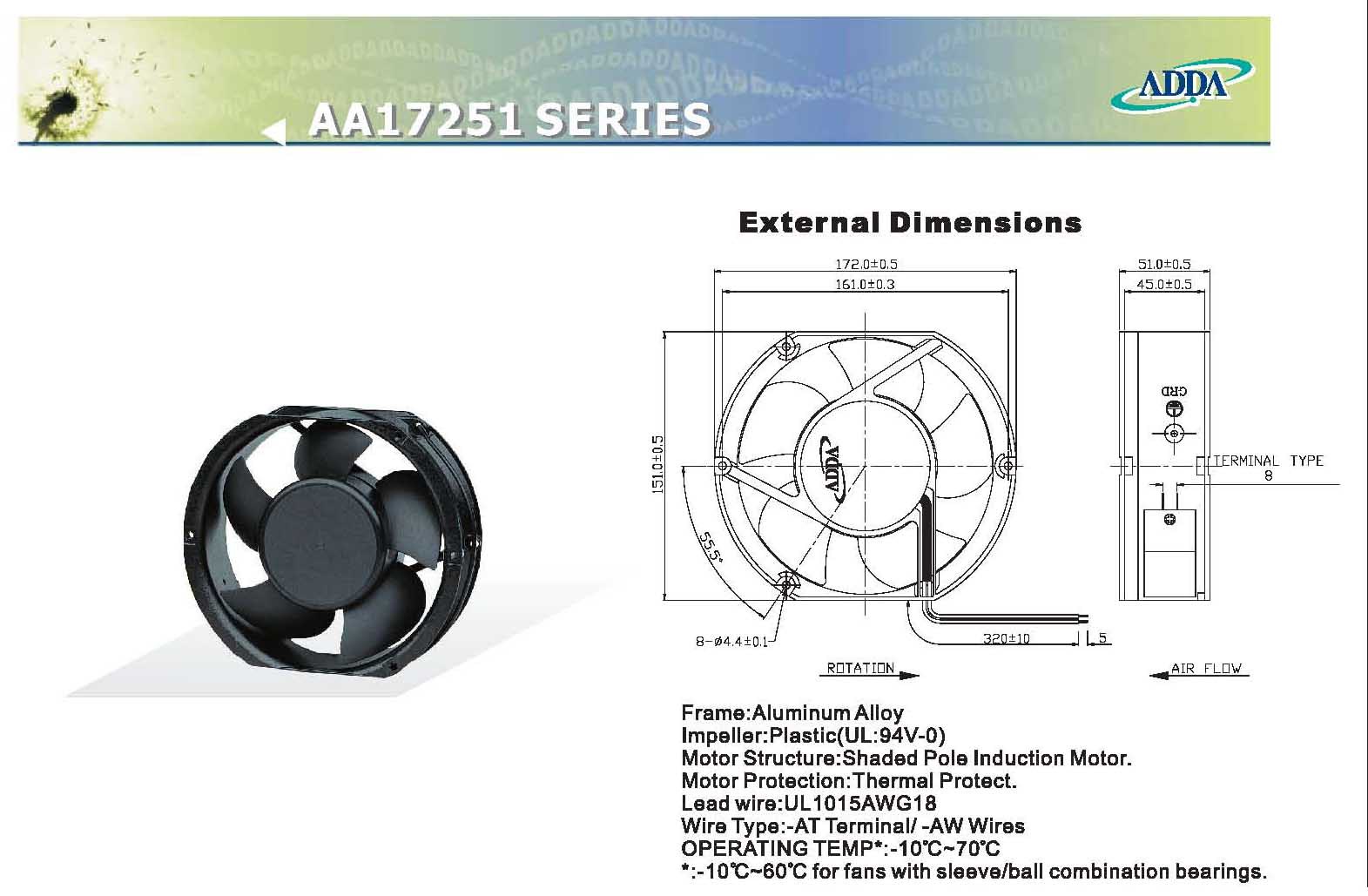

一、AA1752HB-AW（AA1752HB-AT）产品尺寸

二、产品型号

Fan =AC- FAN

Size =172x150x51

Speed =

Flow =

Noise =

Bearing type: ◎=Ball ※=Sleeve ○=1B1S ●=Hypro Bearing
Frame Size	Model No	Bearing	Volt. (VAC)	Current (A)	Speed (rpm)	Air Flow (CFM)	Pressure (InAq)	Noise (dB/A)	PDF
172x150x51(ak-165)	AK1651MB	◎	115/50	0.33	2400	160	0.34	53
172x150x51(ak-165)	AK1651HB	◎	115/50	0.55	2600	172	0.433	55.5
172x150x51(ak-165)	AK1651MB	◎	115/60	0.31	2300	140	0.18	50.3
172x150x51(ak-165)	AK1651HB	◎	115/60	0.46	2700	189	0.408	57.7
172x150x51(ak-165)	AK1652MB	◎	230/50	0.17	2400	160	0.34	53
172x150x51(ak-165)	AK1652HB	◎	230/50	0.27	2600	172	0.433	55.5
172x150x51(ak-165)	AK1652MB	◎	230/60	0.17	2300	140	0.18	50.3
172x150x51(ak-165)	AK1652HB	◎	230/60	0.23	2700	189	0.408	57.7
172x150x51(ak-175)	AK1751MB	◎	115/50	0.15	2500	150.0	0.411	56.0
172x150x51(ak-175)	AK1751HB	◎	115/50	0.25	2700	180.0	0.533	63.0
172x150x51(ak-175)	AK1751MB	◎	115/60	0.19	2500	150.0	0.362	56.0
172x150x51(ak-175)	AK1751HB	◎	115/60	0.24	3100	210.0	0.700	65.0
172x150x51(ak-175)	AK1752MB	◎	230/50	0.08	2500	150.0	0.411	56.0
172x150x51(ak-175)	AK1752HB	◎	230/50	0.11	2700	180.0	0.533	63.0
172x150x51(ak-175)	AK1752MB	◎	230/60	0.10	2500	150.0	0.362	56.0
172x150x51(ak-175)	AK1752HB	◎	230/60	0.13	3100	210.0	0.700	65.0
172x150x51(at)	AA1751HB-AT	◎	115/50	0.52	2500	196	0.425	52.3
172x150x51(at)	AA1751HB-AT	◎	115/60	0.47	2800	210	0.266	53
172x150x51(at)	AA1752HB-AT	◎	230/50	0.26	2500	196	0.425	52.3
172x150x51(at)	AA1752HB-AT	◎	230/60	0.22	2800	210	0.266	53

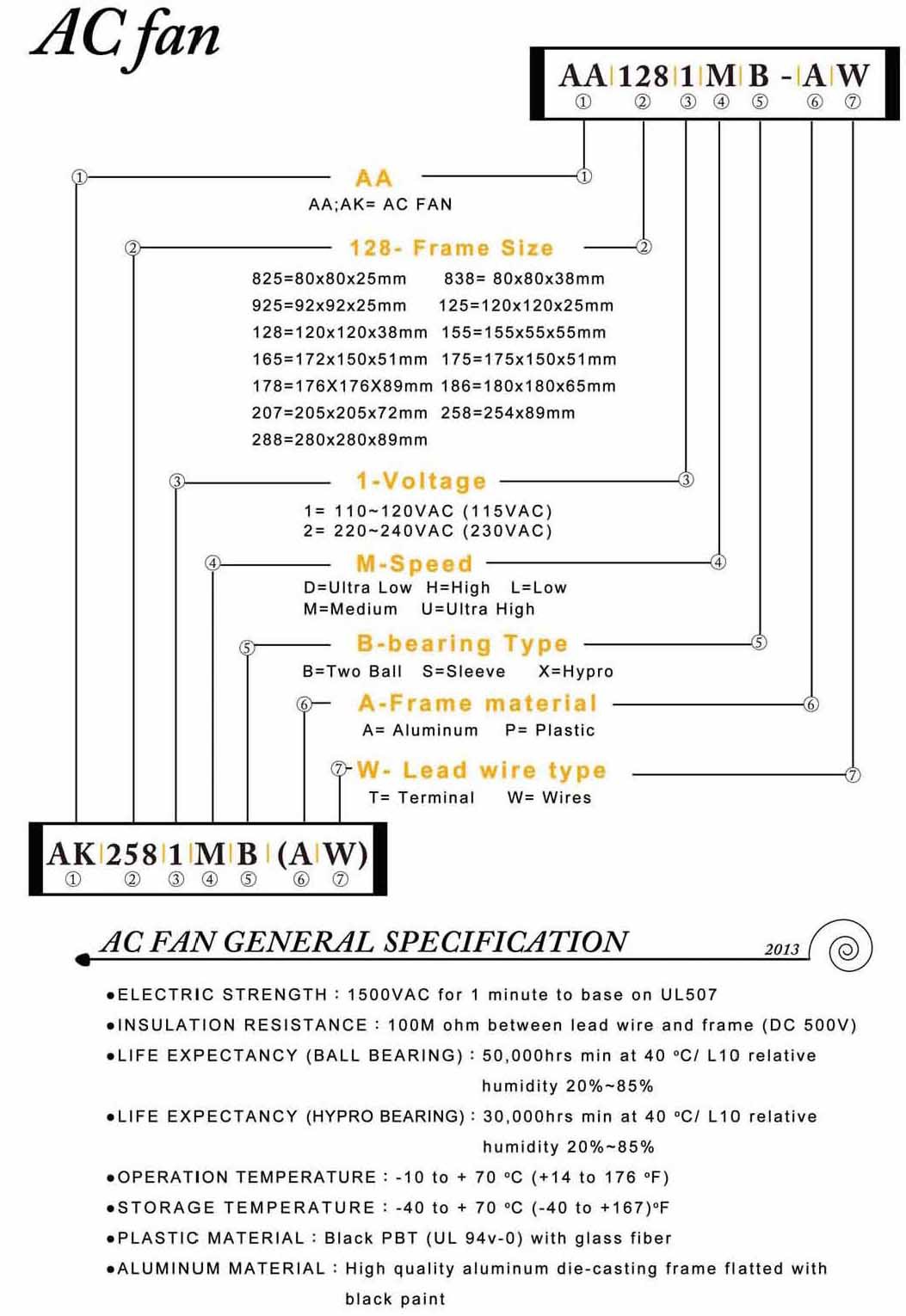

三、ADDA交流风机命名规则





四、ADDA交流风机172*150*51常备现货型号



172*150*51：

AA1752HB-AT(AA1752HB-AW) AA1751MB-AT(AA1751MB-AW) AA1752MB-AT(AA1752MB-AW) AK1651MB-AT(AK1651MB-AW) AK1652HB-AT(Ak1652HB-AW) AK1651HB-AT(Ak1651HB-AW) AK1751MB-AT(AK1751MB-AW) AK1752HB-AT(AK1752HB-AW) AK1652MB-AT(AK1652MB-AW) AK1752MB-AT(AK1752MB-AW) AK1751HB-AT(AK1751HB-AW) AA1751HB-AT(AA1751HB-AW)



若需要了解AA1752HB-AW（AA1752HB-AT）更详细的信息，请联系：



销售经理：荣路路
