AA1282UB-AT（AA1282UB-AW）

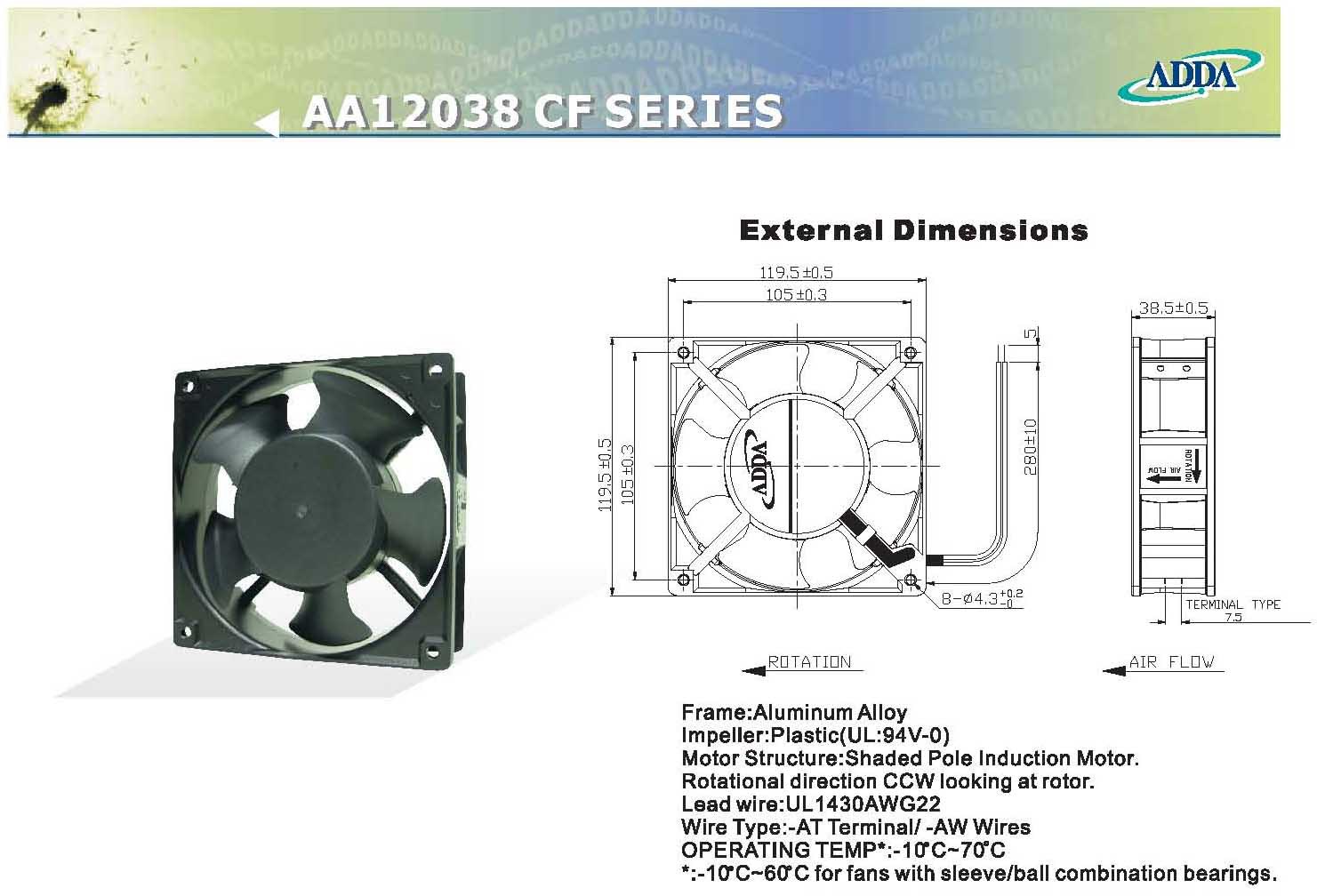

一、AA1282UB-AT（AA1282UB-AW）产品尺寸

二、产品型号

Fan =AC- FAN

Size =120x120x38

Speed =

Flow =

Noise =

Bearing type: ◎=Ball ※=Sleeve ○=1B1S ●=Hypro Bearing
Frame Size	Model No	Bearing	Volt. (VAC)	Current (A)	Speed (rpm)	Air Flow (CFM)	Pressure (InAq)	Noise (dB/A)	PDF
120x120x38	AA1281HB-AWR2T(5E)	◎	115/50	0.15~0.19	1700~2500	88.5	0.294	43
120x120x38	AA1281HB-AWR2T(5N)	◎	115/50	0.15~0.19	1700~2500	88.5	0.294	43
120x120x38	AA1281HB-AWR2T(6E)	◎	115/60	0.14~0.19	1500~2650	95	0.200	43.6
120x120x38	AA1281HB-AWR2T(6N)	◎	115/60	0.14~0.19	1500~2650	95	0.200	43.6
120x120x38	AA1282HB-AWR2T(5E)	◎	230/50	0.06~0.12	1500~2600	88.5	0.294	43
120x120x38	AA1282HB-AWR2T(5N)	◎	230/50	0.06~0.12	1500~2600	88.5	0.294	43
120x120x38	AA1282HB-AWR2T(6E)	◎	230/60	0.07~0.12	1450~2800	95	0.305	43.6
120x120x38	AA1282HB-AWR2T(6N)	◎	230/60	0.07~0.12	1450~2800	95	0.305	43.6
120x120x38(at-a1cf)	AA1281HB-AT(A1CF)	◎※●	115/50	0.27	2700	91.20	0.310	42.6
120x120x38(at-a1cf)	AA1281HB-AT(A1CF)	◎※●	115/60	0.22	3100	103.50	0.350	47.0
120x120x38(at-a1cf)	AA1282HB-AT(A1CF)	◎※●	230/50	0.13	2700	91.20	0.310	42.6
120x120x38(at-a1cf)	AA1282HB-AT(A1CF)	◎※●	230/60	0.11	3100	103.50	0.350	47.0
120x120x38(at-cf)	AA1281DB-AT(CF)	◎※●	115/50	0.08	2300	70.0	0.130	39.2
120x120x38(at-cf)	AA1281UB-AT(CF)	◎※●	115/50	0.28	2400	96.00	0.240	46.4
120x120x38(at-cf)	AA1281LB-AT(CF)	◎※●	115/50	0.12	2400	76.0	0.180	40.1
120x120x38(at-cf)	AA1281HB-AT(CF)	◎※●	115/50	0.24	2600	85.0	0.310	42.2
120x120x38(at-cf)	AA1281MB-AT(CF)	◎※●	115/50	0.18	2600	81.5	0.240	41.0
120x120x38(at-cf)	AA1281DB-AT(CF)	◎※●	115/60	0.08	1700	53.5	0.060	30.5
120x120x38(at-cf)	AA1281LB-AT(CF)	◎※●	115/60	0.11	2200	71.5	0.100	37.9
120x120x38(at-cf)	AA1281UB-AT(CF)	◎※●	115/60	0.24	2600	107.00	0.250	48.1
120x120x38(at-cf)	AA1281MB-AT(CF)	◎※●	115/60	0.15	2800	87.0	0.210	42.0
120x120x38(at-cf)	AA1281HB-AT(CF)	◎※●	115/60	0.19	2900	97.0	0.350	44.5
120x120x38(at-cf)	AA1282DB-AT(CF)	◎※●	230/50	0.04	2300	70.0	0.130	39.2
120x120x38(at-cf)	AA1282UB-AT(CF)	◎※●	230/50	0.14	2400	96.00	0.240	46.4
120x120x38(at-cf)	AA1282LB-AT(CF)	◎※●	230/50	0.06	2400	76.0	0.180	40.1
120x120x38(at-cf)	AA1282HB-AT(CF)	◎※●	230/50	0.11	2600	85.0	0.310	42.2
120x120x38(at-cf)	AA1282MB-AT(CF)	◎※●	230/50	0.08	2600	81.5	0.240	41.0
120x120x38(at-cf)	AA1282DB-AT(CF)	◎※●	230/60	0.04	1700	53.5	0.060	30.5
120x120x38(at-cf)	AA1282LB-AT(CF)	◎※●	230/60	0.05	2200	71.5	0.100	37.9
120x120x38(at-cf)	AA1282UB-AT(CF)	◎※●	230/60	0.12	2600	107.00	0.250	48.1
120x120x38(at-cf)	AA1282MB-AT(CF)	◎※●	230/60	0.07	2800	87.0	0.210	42.0
120x120x38(at-cf)	AA1282HB-AT(CF)	◎※●	230/60	0.09	2900	97.0	0.350	44.5

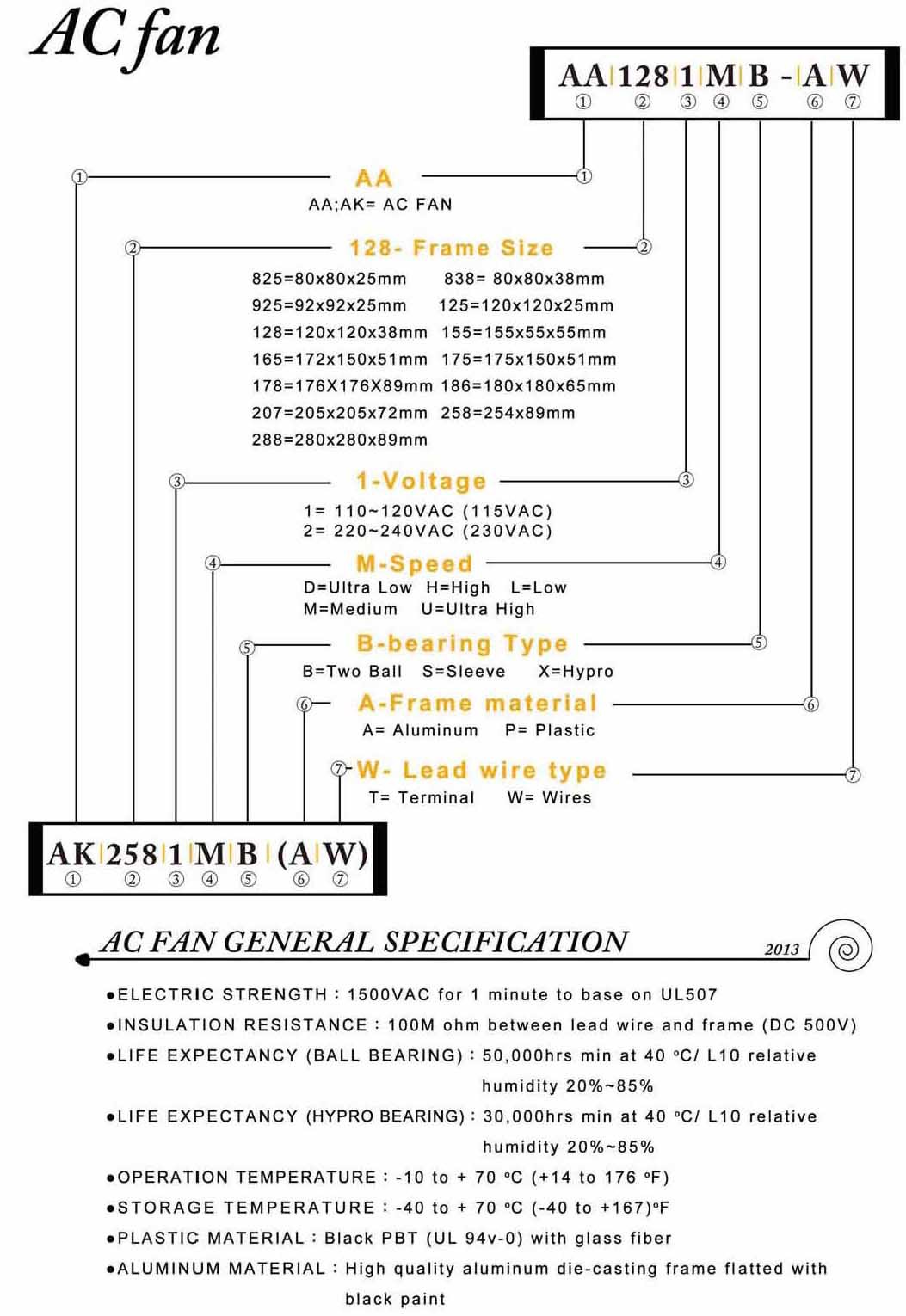

三、ADDA交流风机命名规则

四、ADDA交流风机120*120*38常备现货型号如下：

120*120*38：

AA1282UB-AT(AA1282UB-AW) AA1282HB-AT(AA1282HB-AW) AA1281HB-AT(AA1281HB-AW) AA1282US-AT(AA1282US-AW) AA1281UB-AT(AA1281UB-AW) AA1282MB-AT(AA1282MB-AW) AA1281HS-AT(AA1281HS-AW) AA1281MS-AT(AA1281MS-AW) AA1281US-AT(AA1281US-AW) AA1282HS-AT(AA1282HS-AW) AA1282MS-AT(AA1282MS-AW) AA1281MB-AT(AA1281MB-AW) AA1281LB-AT（AA1281LB-AW） AA1281LS-AT（AA1281LS-AW） AA1282DS-AT(AA1282DS-AW) AA1282LB-AT(AA1282LB-AW) AA1282DB-AT(AA1282DB-AW) AA1281DS-AT(AA1281DS-AW) AA1282LS-AT(AA1282LS-AW) AA1281DB-AT(AA1281DB-AW)
