L型电动葫芦门式起重机
发布时间 2007-03-10 11:50:12
产品描述

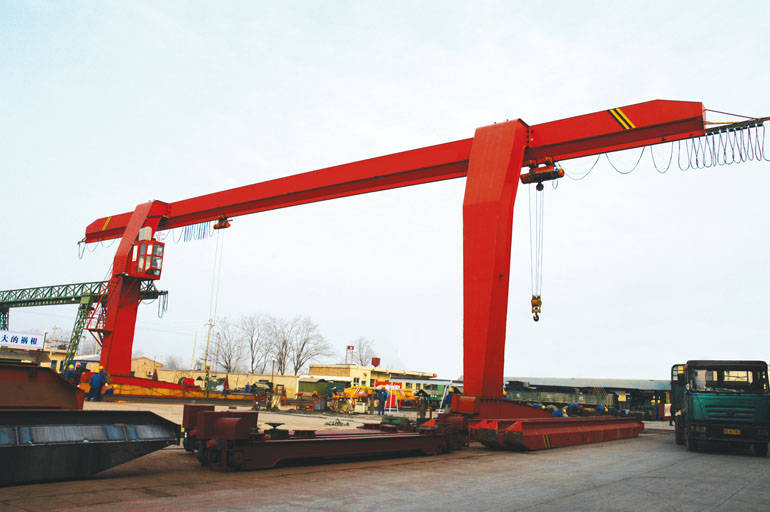

L型电动葫芦门式起重机与CD、MD等多种型号的电动葫芦配套使用，是一种有轨运行的中小型起重机，其适用起重量5~10t，适用跨度为12~30米，工作环境温度-20℃---+40℃内。
本产品为一般用途起重机，多用于露天场所及仓库的装卸或抓取物料。本产品有地面操纵和室内操纵两种形式。
L Model Electric Hoist Girder Gantry Crane is used together with CD, MD Model Electric hoists. It is a track traveling small and medium sized crane. Its proper lifting weight is 5 to 10 tons. Proper span is 12 to 18 meters. Its proper working temperature is -20℃～+40℃.
This product is a regular crane widely used at open ground and storage to unload or grab materials. It has 2 controlling methods, namely ground controlling and room controlling.
技术参数表
Technical Parameter Table
|
起重量Lifting capacity |
t |
5 |
10 |
|||
|
跨度Span |
m |
16 |
20 |
30 |
||
|
起升高度Lifting Height |
m |
9 |
||||
|
运行机构 |
运行速度 |
地面Ground |
m/min |
20 |
||
|
司机室Controlling Room |
20 30 40 |
|||||
|
电动机 |
地面Ground |
YZR |
||||
|
司机室Controlling Room |
||||||
|
减速器Reducer |
|
ZSC400、ZSC500、ZSC600 |
||||
|
车轮直径Wheel Diameter |
mm |
φ400 φ500 |
||||
|
电动葫芦 |
型号Type NO |
|
CD1 MD1 |
|||
|
起升速度Lifting Speed |
m/min |
8（7） 8/0.8（7/0.7） |
||||
|
运行速度Traveling Speed |
m/min |
20 30 |
||||
|
电动机 |
起升Lifting Model |
|
锥形鼠笼型Cone Squirrel-cage Model |
|||
|
运行Traveling |
|
ZDY121-4/0.8kw |
||||
|
工作制度Working System |
|
A5 |
||||
|
荐用钢轨Steel Track Recommended |
|
P38 P43 |
||||
|
电源Power Source |
|
AC 380V 50HZ |
||||
