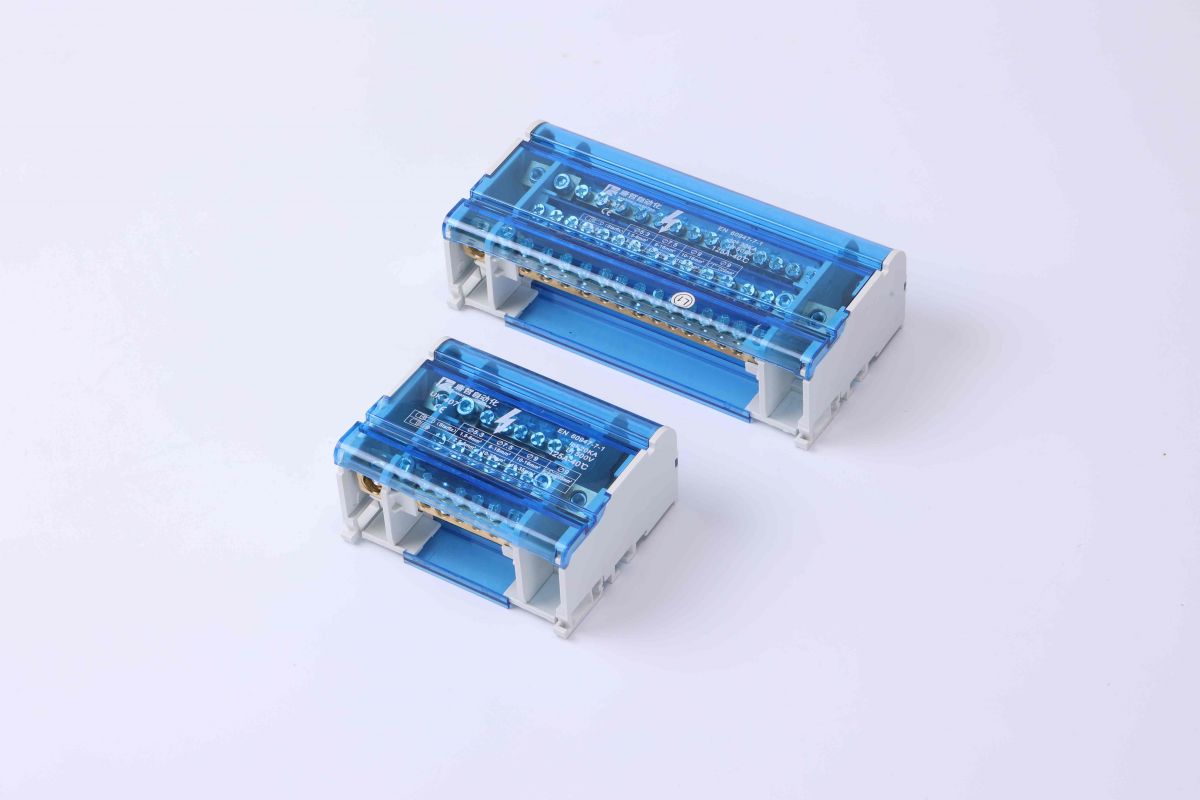

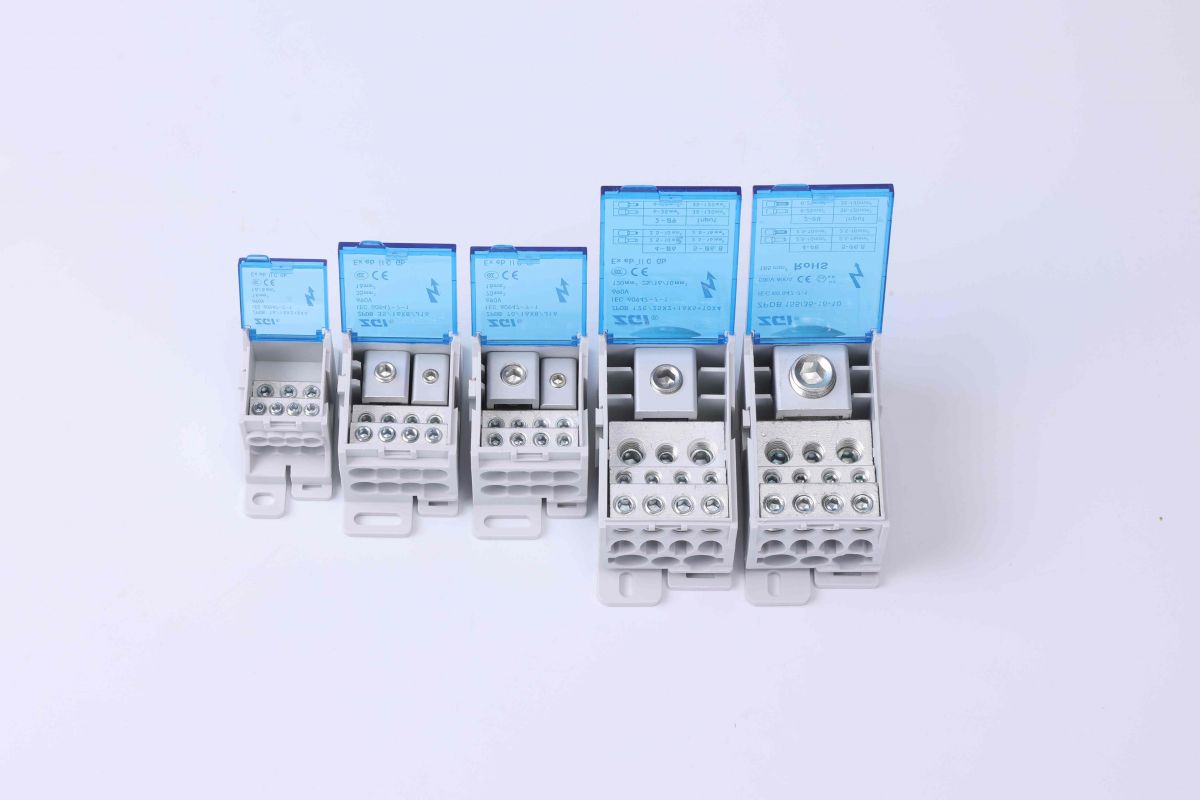

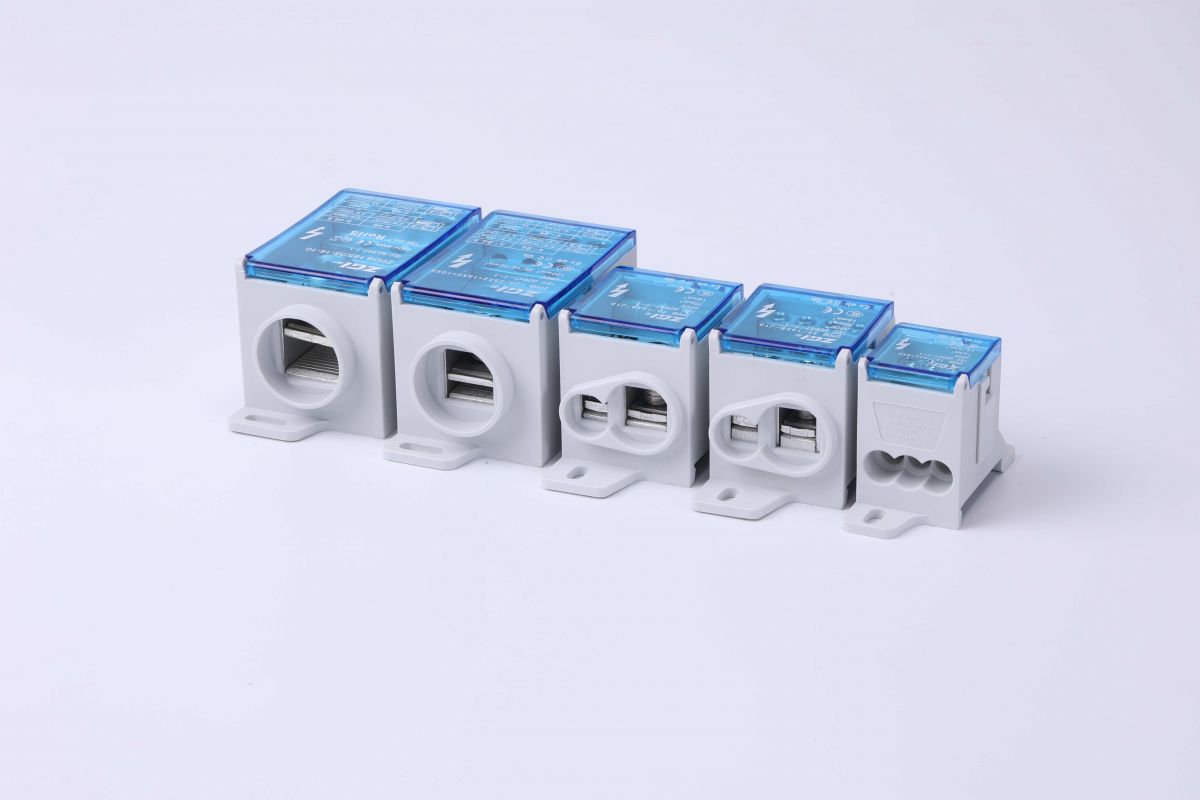

大电流分线器分线端子开关直连分线端子

发布时间 2025-11-13 09:31:32

产品应用领域

本系列产品适用于交流 50Hz、额定工作电压 690V 及以下电压的电路，

输入端连接截面积为 16mm2~185mm2 经过或未经过特殊加工的圆铜导线或连接铜排 , 分

接 1.5mm2~35mm2 圆铜导线用 .

ZPDB 250 型可配用 160-250A 断路器 ,

ZPDB 400 型可配用 400-630A 断路器铜排出线端做分线用。

该系列通过了防爆增安型分线端子 CCC 认证同时取得防爆合格证。该系列分线端子分普

通型 ( 用 IEC 表示 ) 和防爆增安型 ( 用 Ex 表示 ).

ZPDB SERIES MODULAR BRANCHING TERMINALS SUITABLE FOR VARIOUS APPLICATION

FIELDS

This series of products is suitable for circuits with AC 50Hz,rated working voltage 690V and

below,

The input terminal is connected to round copper wires or connecting copper bars with a

cross-sectional area of 16mm2~185mm2

which have undergone or have not undergone special processing. They are used for tapping

round copper wires with a cross-sectional area of 1.5mm2~35mm2.

The ZPOB 250 model can be equipped with a 160-250A circuit breaker, .

The ZPDB 400 model can be equipped with copper discharge terminals of 400-630A circuit

breakers for branching purposes.

This series has passed the OCC certification for explosion-proof and increased! safety branch

terminals, and has also obtained an explosion-proef qualification certificate. This series of

branching terminals is divided into ordinary type (represented by lEC)and explosion-proof

increased safety !ype (represented by Ex)

512

512.0

512
