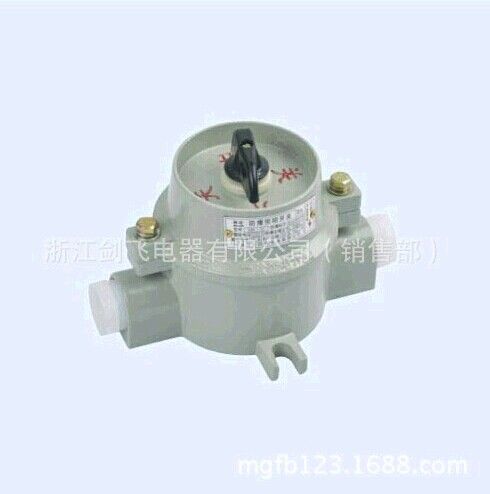

SW-10防爆照明开关，照明开关
发布时间 2014-08-26 15:17:14
产品描述
适用范围 AppIications
- 适用于1区、2区危险场所；
- 适用于ⅡA、ⅡB类，温度组别为T6的爆炸性气体环境。
- Can be used in hazardous areas: Zone 1 and Zone 2.
- Can be used in explosive gas atmospheres of Category ⅡA andⅡB where the temperature classification is T6.
技术参数 Technical parameters
- 执行标准: GB3836.1-2000、GB3836.2-2000、GB3836.3-2000
- 防爆标志: ExedⅡBT6
- 额定电压: AC220V/50Hz
- 额定电流: 10A
- 防护等级: IP54
- 进线口规格: G3/4
- 电缆规格: φ10mm~φ14mm
- Implementing the standard: GB3836.1-2000,GB3836.2-2000 and GB3836.3-2000
- Explosion-proof mark: ExedⅡBT6
- Rated voltage: AC220V/50Hz
- Rated current: 10A
- Protection grade: IP65
- Inlet′s spec: G3/4″
- Cable spec: φ10mm~φ14mm
产品特点 Features
- 壳体采用铝合金压铸成型，表面粉末静电喷塑，结构紧凑，外形美观；
- 本产品为单极开关；
- 产品采用增安型结构，内装隔爆型开关；
- 产品具有防水、防尘等特点；
- 钢管或电缆布线。
- The housing is die cast in aluminum alloy,with high voltage static plasticsprayed surface.
- The product is single-pole switch.
- With safety-increased shell, inside is adopted flame-proof switch.
- Water-proof,dust-proof.
- Conduit wiring or cable wiring.
