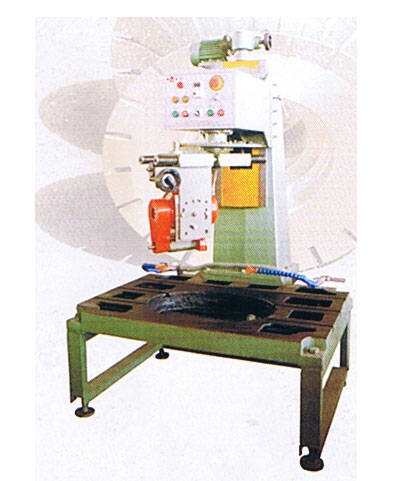

YK523 mining machine

 YK523 mining machine is a kind of stone material that our company has developed production recently to process the equipment.This machine is used in the stone panel and excavate the oval or whole round hole mainly, make the hard work that is engaged in excavating the hole by hand for a long time liberated out, raise labour productivity , promote processing quality that mine, for make dish is it throw deeply processed process do spade work to rub. Especially suitable for producing by batch.  Machine this job aircraft nose under direction , job of template , make from all angles is it turn to pace up and downing around axis, pace up and down and transfer to the frequency conversion of the speed controlling, the aircraft nose goes up and down and automaticallies control, cutting the depth can be adjusted , finish cutting the automatic back tracking. It is simple for the aircraft nose to operate, easy to use.

Technical parameter

Saw the rotational speed of the electric axle	6400r/min	Aperture of the saw	22.2mm
Rotational speed of the main shaft	0.7-1.4r/min	Aperture of the template	100mm
The axle of the saw rotates the angle	25°	Dig the largest diameter of head（Round）	≤580mm
Axle centre-to-centre spacing mesa of the saw	the biggest 340mm  Minimum 0	Dig the largest diameter of head（Ellipse shape）	Long , short , axle a,b≤290mm
The axle is one slice of diameters	105-110	Size of the workingbench	1200mm×780mm
Total capacity of installation	2.02KW	Size of appearance	1230×1200×1830mm
