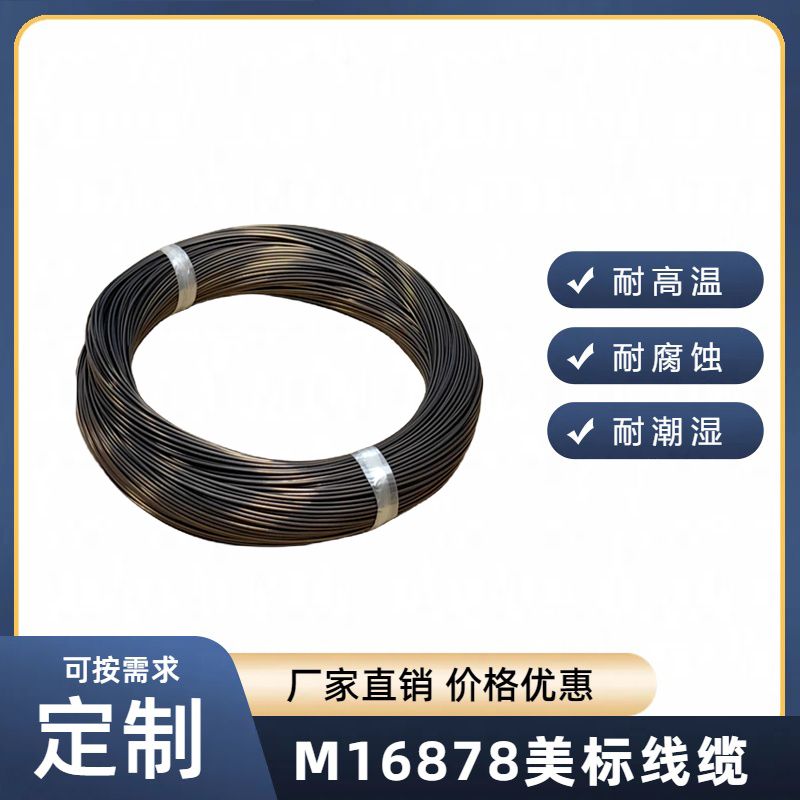

M16878电线M16878 4，M16878导线M1687
发布时间 2025-04-30 14:23:42
产品描述
M16878/4|M16878/5|M16878/6|M16878/11|M16878/12|M16878/13|M16878/20|M16878/21|M16878/22|M16878/23|M16878/24|M16878/25|M16878/26|M16878/27|M16878/28
电线是适合在常温、中等温度及高温环境下使用的连接电线或设备安装电线，分别采用PTFE聚四氟乙烯挤出绝缘、PTFE聚四氟乙烯薄膜绕包绝缘或FEP聚全氟乙丙烯绝缘。
内导体可选择单股或多股铜绞线，表面采用镀银、镀镍或镀锡。
每种绝缘的电线可分为薄壁型、中等壁厚、或厚壁型，分别对应于工作电压250伏特、 600伏特和1000伏特。
【产品简介】
-------------------------------------------------------------------------------
MIL-W-16878/4-(NEMA HP-3 TYPE E?) 中等壁厚挤出型PTFE绝缘导线，600V。
MIL-W-16878/5-(NEMA HP-3 TYPE EE ) 厚壁挤出型耐高压PTFE绝缘导线，1000V。
MIL-W-16878/6-(NEMA HP-3 TYPE ET ) 薄壁挤出型轻量化PTFE绝缘导线，250V。
M16878是运用于高温领域的挤出型PTFE绝缘导线。采用的PTFE绝缘具有优良的耐高温，耐腐蚀，耐潮湿、耐老化，耐磨，阻燃等性能，还具有优良的热稳定性和抗化学性，抗氧化性和高可靠性。可长期运用于环境或导体温度在200℃以内的电子和电气领域，短时温度可达300℃。还可用于电流过载或机械压力大的系统中，特别适用于安装空间有限，对重量比较敏感的仪器仪表、电子设备内部。 能够有效抵抗焊接工艺中电烙铁高温对绝缘层收缩熔化的影响。
【产品特性】
-------------------------------------------------------------------------------
●击穿电压高：PTFE聚四氟乙烯绝缘材料，不受环境及频率的影响，体积电阻可达1018欧姆?厘米，介质损耗小,击穿电压高。
●耐高低温
PTFE的长期使用温度范围为-190-+260℃，不影响其绝缘特性。高温短时间可以达到300℃，具有不燃烧特性，离开火焰即自行熄灭。
●优异的耐化学性：聚四氟乙烯绝缘材料，除熔融的碱金属外，几乎不受任何化学试剂腐蚀。例如在浓硫酸、硝酸、盐酸，甚至在王水中煮沸，其重量及性能均无变化，也几乎不溶于所有的溶剂，只在300℃以上稍溶于全烷烃（约0.1g/100g）。
●优异的耐候性：聚四氟乙烯不吸潮，不燃，对氧、紫外线均极稳定，所以具有优异的耐候性。
【规格参数】可按需求定制-------------------------------------------------------------------------------
|
产品代号 |
代号 |
AWG |
结构 |
导体直径 |
**小绝缘直径 |
**大绝缘直径 |
**大直流电阻 |
|
M16878/4-32-1 |
M16878/4 BAA-X |
32 |
1/32 |
.008 (.20) |
.025 (.64) |
.033 (.84) |
554 |
|
M16878/4-30-1 |
M16878/4 BBA-X |
30 |
1/30 |
.010 (.254) |
.026 (.66) |
.034 (.86) |
348 |
|
M16878/4-28-1 |
M16878/4 BCA-X |
28 |
1/28 |
.013 (.33) |
.029 (.74) |
.037 (.94) |
223 |
|
M16878/4-26-1 |
M16878/4 BDA-X |
26 |
1/26 |
.016 (.41) |
.032 (.81) |
.040 (1.02) |
138 |
|
M16878/4-24-1 |
M16878/4 BEA-X |
24 |
1/24 |
.020 (.51) |
.036 (.91) |
.044 (1.12) |
86 |
|
M16878/4-22-1 |
M16878/4 BFA-X |
22 |
1/22 |
.025 (.64) |
.041 (1.04) |
.049 (1.24) |
55 |
|
M16878/4-20-1 |
M16878/4 BGA-X |
20 |
1/20 |
.032 (.81) |
.048 (1.22) |
.056 (1.42) |
34 |
|
M16878/4-18-1 |
M16878/4 BHA-X |
18 |
1/18 |
.040 (1.02) |
.056 (1.42) |
.066 (1.68) |
22 |
|
M16878/4-16-19 |
M16878/4 BJE-X |
16 |
19/29 |
.053 (1.35) |
.073 (1.85) |
.087 (2.21) |
15 |
|
M16878/4-14-19 |
M16878/4 BKE-X |
14 |
19/27 |
.067 (1.70) |
.088 (2.24) |
.102 (2.59) |
10 |
|
M16878/4-12-19 |
M16878/4 BLE-X |
12 |
19/25 |
.084 (2.13) |
.107 (2.72) |
.121 (3.07) |
6 |
|
M16878/4-10-19 |
M16878/4 BMG-X |
10 |
37/26 |
.108 (2.74) |
.127 (3.23) |
.141 (3.58) |
4 |
|
M16878/5-32-1 |
M16878/5 BAA-X |
32 |
1/32 |
.008 (.20) |
.034 (.87) |
.042 (1.07) |
554 |
|
M16878/5-30-1 |
M16878/5 BBA-X |
30 |
1/30 |
.010 (.254) |
.036 (.91) |
.044 (1.12) |
348 |
|
M16878/5-28-1 |
M16878/5 BCA-X |
28 |
1/28 |
.013 (.33) |
.039 (.99) |
.047 (1.19) |
223 |
|
M16878/5-26-1 |
M16878/5 BDA-X |
26 |
1/26 |
.016 (.41) |
.042 (1.07) |
.050 (1.27) |
138 |
|
M16878/5-24-1 |
M16878/5 BEA-X |
24 |
1/24 |
.020 (.51) |
.046 (1.17) |
.054 (1.37) |
86 |
|
M16878/5-22-1 |
M16878/5 BFA-X |
22 |
1/22 |
.025 (.64) |
.051 (1.30) |
.060 (1.52) |
55 |
|
M16878/5-20-1 |
M16878/5 BGA-X |
20 |
1/20 |
.032 (.81) |
.058 (1.47) |
.066 (1.68) |
34 |
|
M16878/5-18-1 |
M16878/5 BHA-X |
18 |
1/18 |
.040 (1.02) |
.066 (1.68) |
.076 (1.93) |
22 |
|
M16878/5-16-19 |
M16878/5 BJE-X |
16 |
19/29 |
.053 (1.35) |
.083 (2.11) |
.095 (2.41) |
15 |
|
M16878/5-14-19 |
M16878/5 BKE-X |
14 |
19/27 |
.067 (1.70) |
.098 (2.49) |
.114 (2.90) |
10 |
|
M16878/5-12-19 |
M16878/5 BLE-X |
12 |
19/25 |
.084 (2.13) |
.117 (2.97) |
.133 (3.38) |
6 |
|
M16878/5-10-37 |
M16878/5 BMG-X |
10 |
37/26 |
.108 (2.74) |
.137 (3.48) |
.153 (3.89) |
4 |
|
M16878/6-38-1 |
N/A |
38 |
1/38 |
.004 (.10) |
.012 (.31) |
.018 (.46) |
2125 |
|
M16878/6-36-1 |
N/A |
36 |
1/36 |
.005 (.13) |
.013 (.33) |
.019 (.48) |
1361 |
|
M16878/6-34-1 |
N/A |
34 |
1/34 |
.006 (.15) |
.014 (.36) |
.020 (.51) |
886 |
|
M16878/6-32-1 |
M16878/6 BAA-X |
32 |
1/32 |
.008 (.20) |
.016 (.41) |
.022 (.56) |
554 |
|
M16878/6-30-1 |
M16878/6 BBA-X |
30 |
1/30 |
.010 (.254) |
.020 (.51) |
.024 (.61) |
348 |
|
M16878/6-28-1 |
M16878/6 BCA-X |
28 |
1/28 |
.013 (.33) |
.023 (.58) |
.027 (.69) |
223 |
|
M16878/6-26-1 |
M16878/6 BDA-X |
26 |
1/26 |
.016 (.41) |
.026 (.66) |
.030 (.76) |
138 |
|
M16878/6-24-7 |
M16878/6 BEB-X |
24 |
7/32 |
.024 (.61) |
.034 (.86) |
.038 (.97) |
81 |
|
M16878/6-22-7 |
M16878/6 BFB-X |
22 |
7/30 |
.030 (.76) |
.040 (1.02) |
.044 (1.12) |
52 |
|
M16878/6-20-7 |
M16878/6 BGB-X |
20 |
7/28 |
.038 (.97) |
.048 (1.22) |
.052 (1.32) |
33 |
