GA44H-16C、25、40 GA44H-64型
发布时间 2007-09-07 15:16:38
产品描述

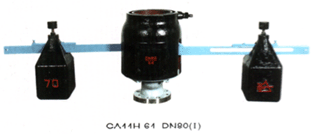

A44H-16C/25/40 GA44H-64型 双杠杆安全阀 dual-lever safety valve
|
工作温度 Wording temperature |
≤450℃ |
|
适用介质 Suitable medium |
空气、蒸汽 Air,steam |
|
|
|
|
|
|
|
|
|
|
型号 Model |
公称通径DN （mm） Nominal diameter |
尺 寸 （mm） Dimension |
|||||||||
|
do-z |
D |
D1 |
D2 |
D6 |
f |
f2 |
b |
z-?d |
Lo |
||
|
GA44H-1.6 |
80 |
50X2 |
200 |
160 |
135 |
3 |
20 |
8-18 |
840 |
||
|
GA44H-2.5 |
80 |
50X2 |
200 |
160 |
135 |
3 |
22 |
8-18 |
840 |
||
|
GA44H-4.0 |
80 |
50X2 |
200 |
160 |
135 |
121 |
3 |
22 |
8-18 |
840 |
|
|
GA44H-6.4 |
80 |
40X2 |
210 |
170 |
140 |
121 |
3 |
30 |
8-23 |
840 |
|
GA42H-16C/25/40 GA44H-100型 单杠杆安全阀 single-lever safety valve
|
|
|
|
|
|
|
工作温度 Wording temperature |
≤450℃ |
|
适用介质 Suitable medium |
空气、蒸汽 Air,steam |
|
型号 Model |
公称通径DN （mm） Nominal diameter |
尺 寸 （mm） Dimension |
|||||||||
|
do-z |
D |
D1 |
D2 |
D6 |
f |
f2 |
b |
z-?d |
Lo |
||
|
GA42H-16 |
50 |
40X1 |
165 |
125 |
100 |
3 |
16 |
4-18 |
840 |
||
|
GA42H-25 |
50 |
40X1 |
165 |
125 |
100 |
3 |
20 |
4-18 |
840 |
||
|
GA42H-40 |
50 |
40X1 |
165 |
125 |
100 |
88 |
3 |
4 |
|||
