A37H-16C、25、40 A38Y-16C、25、40
发布时间 2007-09-07 13:43:59
产品描述

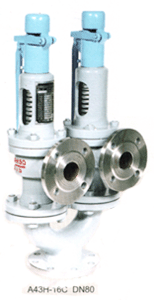

A37H-16C/25/40 A38Y-16C/25/40 A43H-16C/25/40型双联弹簧式安全阀 duplex spring-type safety valve
|
工作温度 Working temperature |
<=350°C |
|
适用介质 Suitable medium |
水、蒸汽、空气等介质 Air、steam、water、Gas etc. |
|
|
|
|
|
|
|
|
|
|
A37型公称通径DN（mm） Norminal diameter of model A37 |
50 |
80 |
100 |
125 |
150 |
|
相应A47H型公称通径DN Norminal diameter or the relevant A47H |
32 |
65 |
80 |
100 |
125 |
|
|
|
A43型公称通径DN（mm） Norminal diameter of model A43 |
50 |
80 |
100 |
125 |
150 |
|
相应A47H型公称通径DN Norminal diameter or the relevant A47H |
32 |
50 |
85 |
100 |
125 |
|
|
|
A38型公称通径DN（mm） Norminal diameter of model A38 |
50 |
80 |
100 |
150 |
|
|
相应A47H型公称通径DN Norminal diameter or the relevant A47H |
32 |
50 |
65 |
100 |
|
|
|
|
|
|
|
|
|
|
公称通径 DN（mm） Norminal diameter |
尺寸（mm）Dimension |
||||
|
L |
L1 |
B |
DN" |
d0 |
|
|
A37型 |
|||||
|
50 |
115 |
215 |
160 |
32 |
2×25 |
|
80 |
140 |
310 |
205 |
65 |
2×50 |
|
100 |
160 |
355 |
255 |
80 |
2×65 |
|
125 |
170 |
410 |
260 |
100 |
2×80 |
|
150 |
190 |
430 |
275 |
125 |
2×100 |
|
A43型 |
|||||
|
50 |
115 |
215 |
160 |
32 |
2×25 |
|
80 |
135 |
295 |
190 |
50 |
2×40 |
|
100 |
160 |
352 |
255 |
80 |
2×65 |
|
125 |
170 |
410 |
260 |
100 |
2×80 |
|
150 |
190 |
430 |
275 |
125 |
2×100 |
|
