ADDA散热风扇AP5212MX-E70

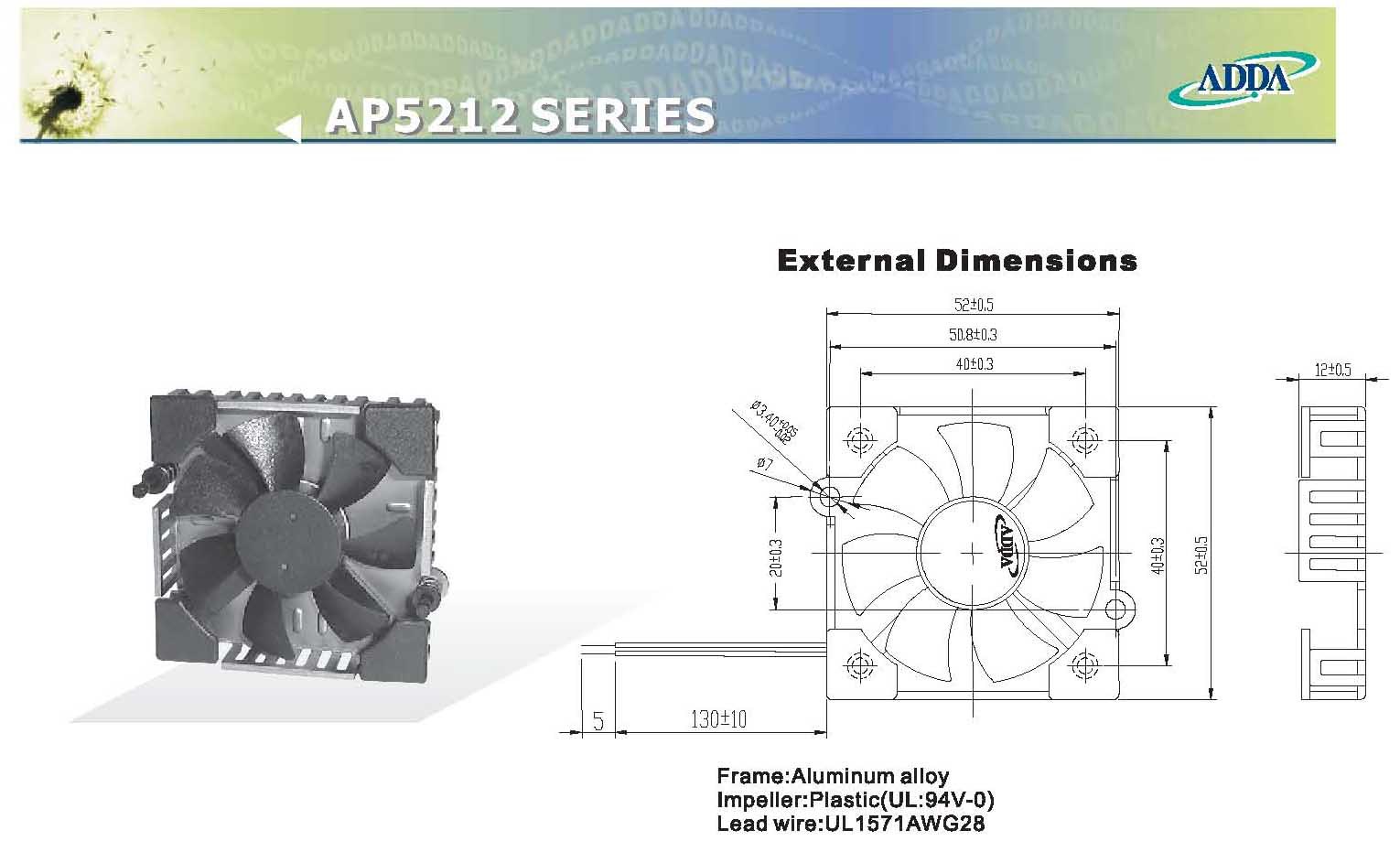

一、ADDA散热风扇AP5212MX-E70产品尺寸

二、产品型号

Fan =CHIP-COOLER

Size =52x52x12

Speed =

Flow =

Noise =

Bearing type:　◎=Ball　※=Sleeve　○=1B1S　●=Hypro Bearing
Frame Size	Model No	Bearing	Volt. (VAC)	Current (A)	Speed (rpm)	Air Flow (CFM)	Pressure (InAq)	Noise (dB/A)	PDF
52x52x12(8)	AP5212MX-E70(8)	◎○●	12	0.06	4300	9.3	0.07	20.8
52x52x12(8)	AP5212HX-E70(8)	◎○●	12	0.08	5200	11.8	0.13	27

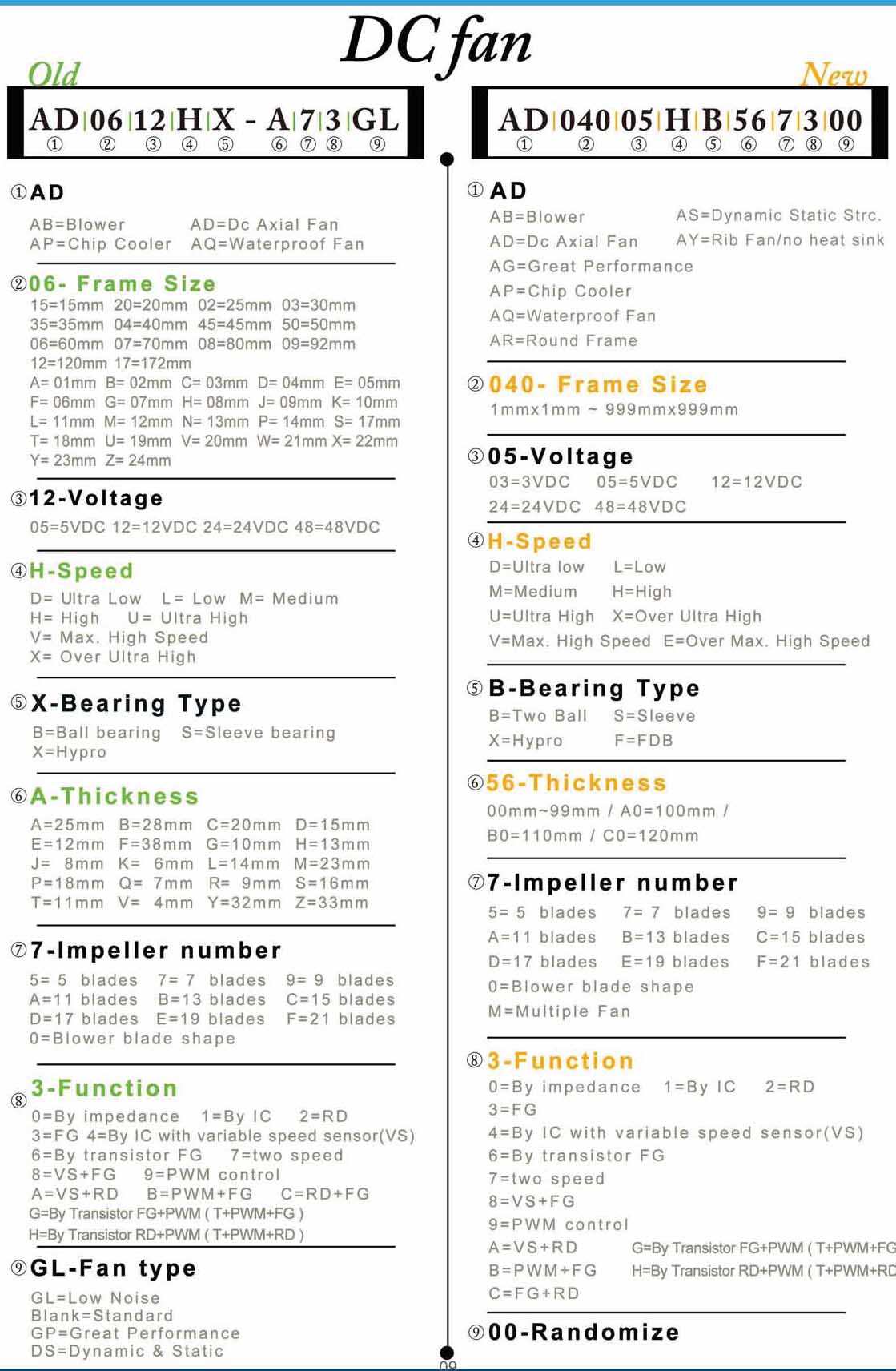

三、ADDA直流风机命名规则

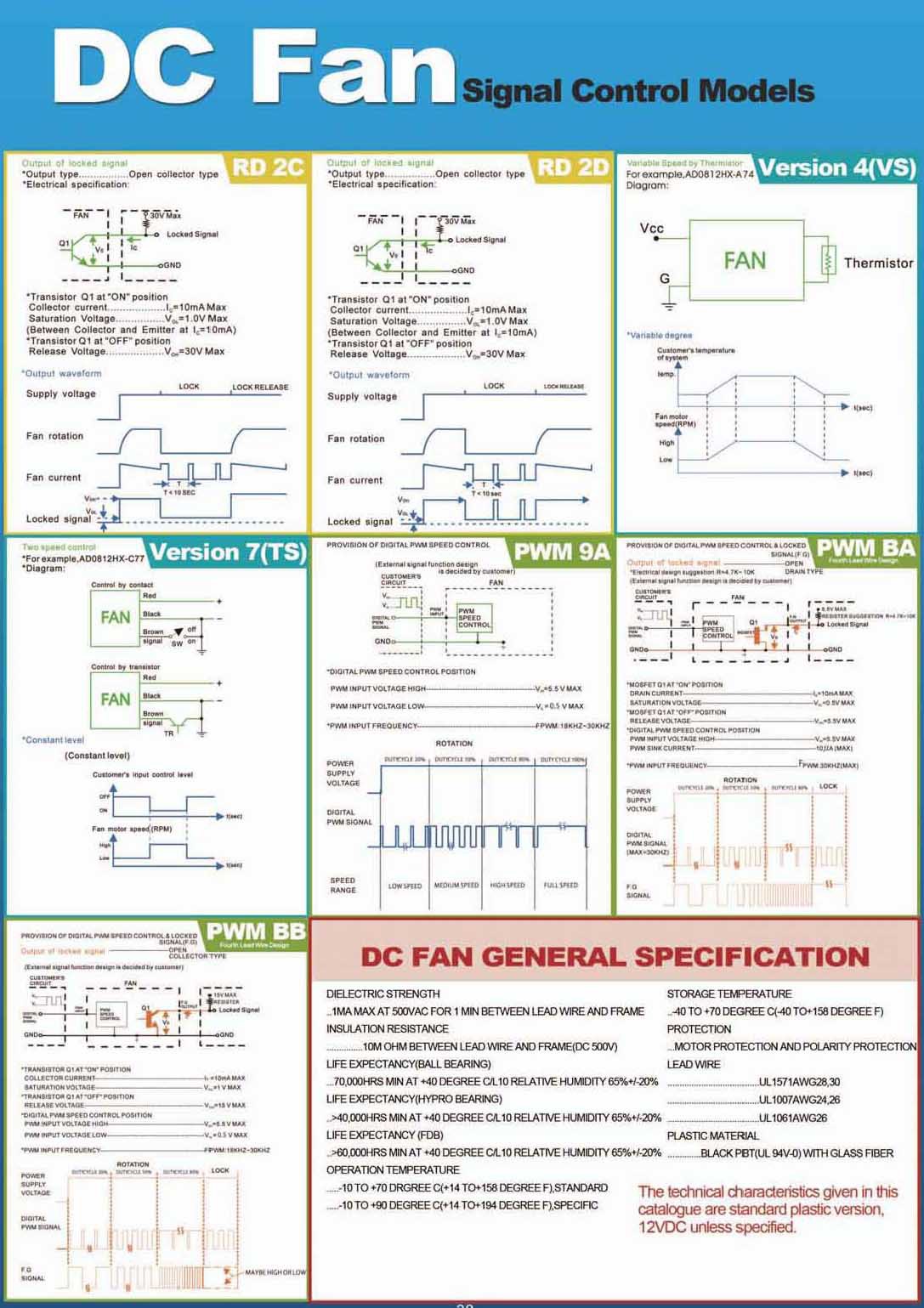

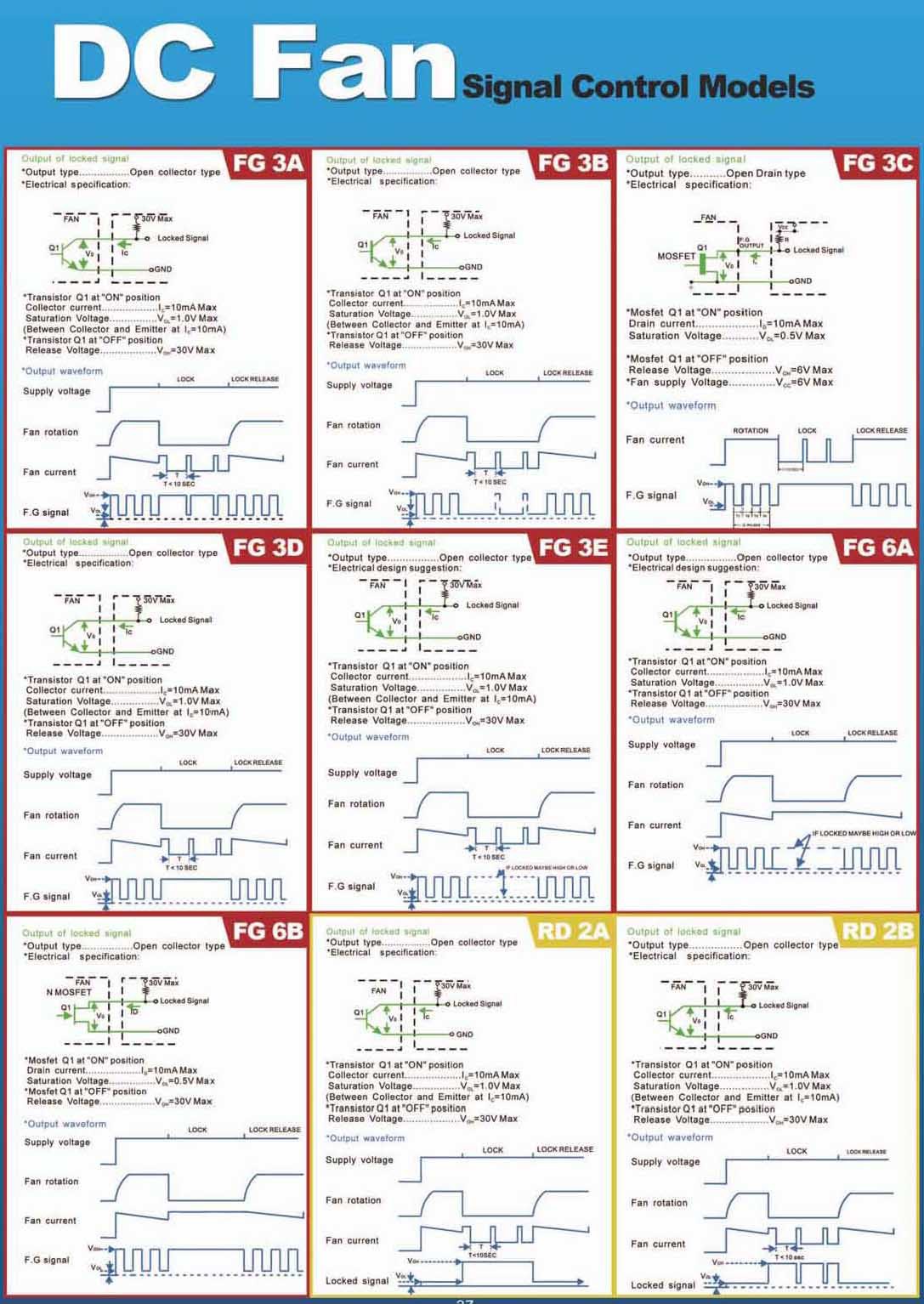

四、ADDA直流风机特殊功能电路图




五、ADDA芯片散热风机常备现货型号

ADDA芯片散热风机

35*35*08:

 AP3512MB-J70 AP3505MB-J70 AP3505HB-J70 AP3512HB-J70 AP3505LB-J70

40*40*08:

AP0405MX-J70(AP0405MB-J70) AP0412MX-J70(AP0412MB-J70)

40*40*10:

AP0412LX-G70(AP0412LB-G70) AP0412MX-G70(AP0412MB-G70) AP0405MX-G70(AP0405MB-G70)

45*45*08:

AP0405HB-J90 AP0412LB-J90 AP0412HB-J90 AP0412MB-J90 AP0405MB-J90 AP0405LB-J90

45*45*10:

AP0412LX-G90(AP0412LB-J90) AP0405LX-G90(AP0405LB-J90) AP0412MX-G90(AP0412MB-J90) AP0405MX-G90(AP0405MB-J90) AP0405HX-G90(AP0405HB-J90) AP0412HX-G90(AP0412HB-J90)

50*50*08:

AP0505HX-J90(AP0505HB-J90) AP0505MX-J90(AP0505MB-J90) AP0512MX-J90(AP0512MB-J90) AP0512LX-J90(AP0512LB-J90) AP0512HX-J90(AP0512HB-J90) AP0505LX-J90(A P0505LB-J90)

52*52*12:

AP5212MX-E70(AP5212MB-E70) AP5212HX-E70(AP5212HB-E70)
