AA1282HB-AT（AA1282HB-AW）
发布时间 2015-04-27 22:20:04
产品描述
一、AA1282HB-AT（AA1282HB-AW）产品尺寸
二、产品型号
| Fan =AC- FAN | Size =120x120x38 | Speed = | Flow = | Noise = |
| Bearing type: ◎=Ball ※=Sleeve ○=1B1S ●=Hypro Bearing | |||||||||
| Frame Size | Model No | Bearing | Volt. (VAC) |
Current (A) |
Speed (rpm) |
Air Flow (CFM) |
Pressure (InAq) |
Noise (dB/A) |
|
| 120x120x38 | AA1281HB-AWR2T(5E) | ◎ | 115/50 | 0.15~0.19 | 1700~2500 | 88.5 | 0.294 | 43 | |
| 120x120x38 | AA1281HB-AWR2T(5N) | ◎ | 115/50 | 0.15~0.19 | 1700~2500 | 88.5 | 0.294 | 43 | |
| 120x120x38 | AA1281HB-AWR2T(6E) | ◎ | 115/60 | 0.14~0.19 | 1500~2650 | 95 | 0.200 | 43.6 | |
| 120x120x38 | AA1281HB-AWR2T(6N) | ◎ | 115/60 | 0.14~0.19 | 1500~2650 | 95 | 0.200 | 43.6 | |
| 120x120x38 | AA1282HB-AWR2T(5E) | ◎ | 230/50 | 0.06~0.12 | 1500~2600 | 88.5 | 0.294 | 43 | |
| 120x120x38 | AA1282HB-AWR2T(5N) | ◎ | 230/50 | 0.06~0.12 | 1500~2600 | 88.5 | 0.294 | 43 | |
| 120x120x38 | AA1282HB-AWR2T(6E) | ◎ | 230/60 | 0.07~0.12 | 1450~2800 | 95 | 0.305 | 43.6 | |
| 120x120x38 | AA1282HB-AWR2T(6N) | ◎ | 230/60 | 0.07~0.12 | 1450~2800 | 95 | 0.305 | 43.6 | |
| 120x120x38(at-a1cf) | AA1281HB-AT(A1CF) | ◎※● | 115/50 | 0.27 | 2700 | 91.20 | 0.310 | 42.6 | |
| 120x120x38(at-a1cf) | AA1281HB-AT(A1CF) | ◎※● | 115/60 | 0.22 | 3100 | 103.50 | 0.350 | 47.0 | |
| 120x120x38(at-a1cf) | AA1282HB-AT(A1CF) | ◎※● | 230/50 | 0.13 | 2700 | 91.20 | 0.310 | 42.6 | |
| 120x120x38(at-a1cf) | AA1282HB-AT(A1CF) | ◎※● | 230/60 | 0.11 | 3100 | 103.50 | 0.350 | 47.0 | |
| 120x120x38(at-cf) | AA1281DB-AT(CF) | ◎※● | 115/50 | 0.08 | 2300 | 70.0 | 0.130 | 39.2 | |
| 120x120x38(at-cf) | AA1281UB-AT(CF) | ◎※● | 115/50 | 0.28 | 2400 | 96.00 | 0.240 | 46.4 | |
| 120x120x38(at-cf) | AA1281LB-AT(CF) | ◎※● | 115/50 | 0.12 | 2400 | 76.0 | 0.180 | 40.1 | |
| 120x120x38(at-cf) | AA1281HB-AT(CF) | ◎※● | 115/50 | 0.24 | 2600 | 85.0 | 0.310 | 42.2 | |
| 120x120x38(at-cf) | AA1281MB-AT(CF) | ◎※● | 115/50 | 0.18 | 2600 | 81.5 | 0.240 | 41.0 | |
| 120x120x38(at-cf) | AA1281DB-AT(CF) | ◎※● | 115/60 | 0.08 | 1700 | 53.5 | 0.060 | 30.5 | |
| 120x120x38(at-cf) | AA1281LB-AT(CF) | ◎※● | 115/60 | 0.11 | 2200 | 71.5 | 0.100 | 37.9 | |
| 120x120x38(at-cf) | AA1281UB-AT(CF) | ◎※● | 115/60 | 0.24 | 2600 | 107.00 | 0.250 | 48.1 | |
| 120x120x38(at-cf) | AA1281MB-AT(CF) | ◎※● | 115/60 | 0.15 | 2800 | 87.0 | 0.210 | 42.0 | |
| 120x120x38(at-cf) | AA1281HB-AT(CF) | ◎※● | 115/60 | 0.19 | 2900 | 97.0 | 0.350 | 44.5 | |
| 120x120x38(at-cf) | AA1282DB-AT(CF) | ◎※● | 230/50 | 0.04 | 2300 | 70.0 | 0.130 | 39.2 | |
| 120x120x38(at-cf) | AA1282UB-AT(CF) | ◎※● | 230/50 | 0.14 | 2400 | 96.00 | 0.240 | 46.4 | |
| 120x120x38(at-cf) | AA1282LB-AT(CF) | ◎※● | 230/50 | 0.06 | 2400 | 76.0 | 0.180 | 40.1 | |
| 120x120x38(at-cf) | AA1282HB-AT(CF) | ◎※● | 230/50 | 0.11 | 2600 | 85.0 | 0.310 | 42.2 | |
| 120x120x38(at-cf) | AA1282MB-AT(CF) | ◎※● | 230/50 | 0.08 | 2600 | 81.5 | 0.240 | 41.0 | |
| 120x120x38(at-cf) | AA1282DB-AT(CF) | ◎※● | 230/60 | 0.04 | 1700 | 53.5 | 0.060 | 30.5 | |
| 120x120x38(at-cf) | AA1282LB-AT(CF) | ◎※● | 230/60 | 0.05 | 2200 | 71.5 | 0.100 | 37.9 | |
| 120x120x38(at-cf) | AA1282UB-AT(CF) | ◎※● | 230/60 | 0.12 | 2600 | 107.00 | 0.250 | 48.1 | |
| 120x120x38(at-cf) | AA1282MB-AT(CF) | ◎※● | 230/60 | 0.07 | 2800 | 87.0 | 0.210 | 42.0 | |
| 120x120x38(at-cf) | AA1282HB-AT(CF) | ◎※● | 230/60 | 0.09 | 2900 | 97.0 | 0.350 | 44.5 | |

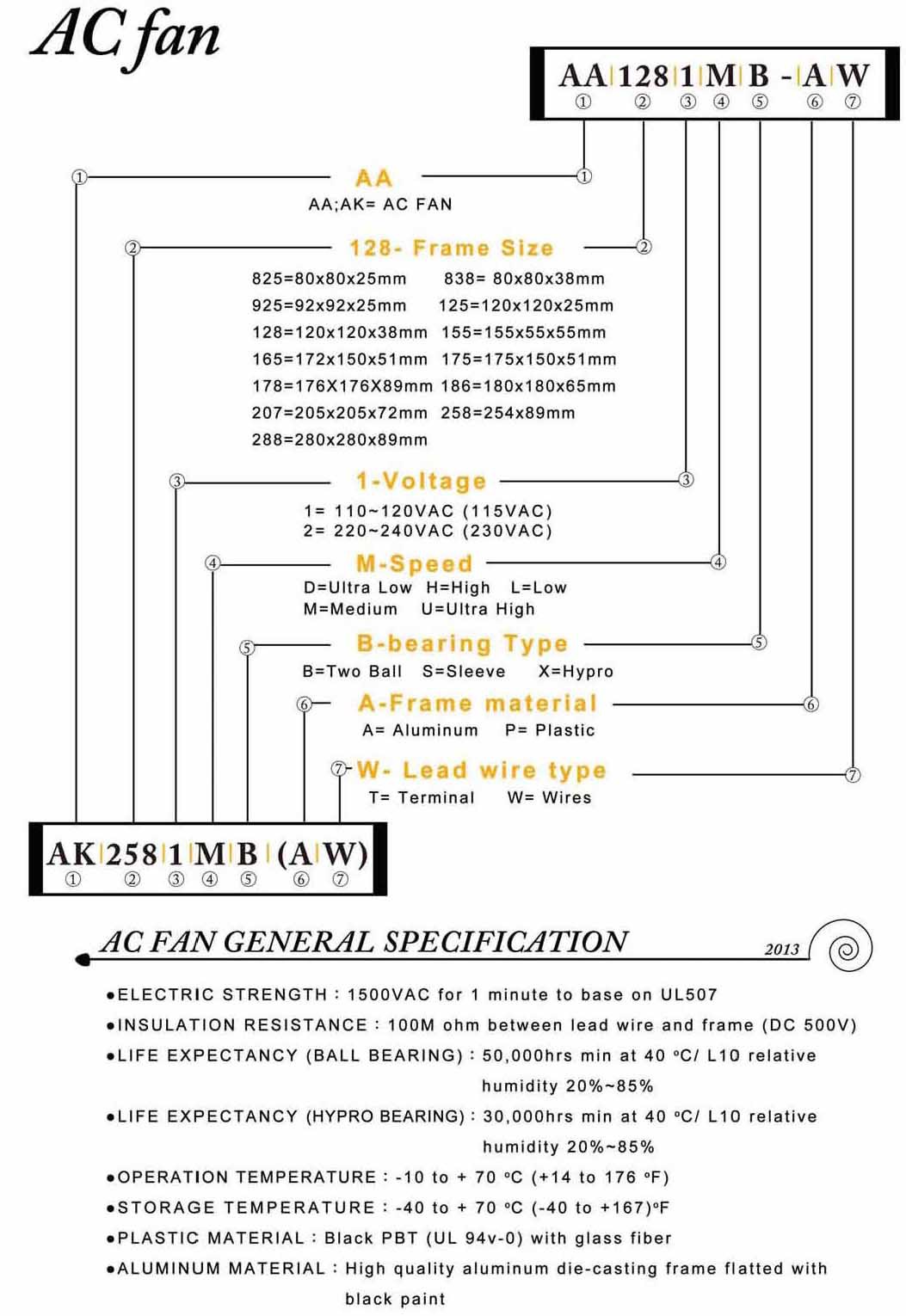

三、ADDA交流风机命名规则
四、ADDA交流风机常备现货型号
ADDA交流风机
80*80*25：
AA8252MB-AT（AA8252MB-AW） AA8252HB-AT(AA8252HB-AW) AA8251MS-AT（AA8251MS-AW） AA8251MB-AT（AA8251MB-AW） AA8252MS-AT（AA8252MS-AW） AA8252HS-AT(AA8252HS-AW) AA8251HB-AT(AA8251HB-AW) AA8251HS-AT(AA8251HS-AW)
80*80*38：
AA8382HB-AT（AA8382HB-AW） AA8381MS-AT（AA8381MS-AW） AA8381HB-AT（AA8381HB-AW） AA8382MS-AT（AA8382MS-AW） AA8381HS-AT（AA8381HS-AW） AA8382MB-AT(AA8382MB-AW) AA8381MB-AT（AA8381MB-AW）AA8382HS-AT（AA8382HS-AW）
92*92*25：
AA9252HB-AT（AA9252HB-AW） AA9252MB-AT（AA9252MB-AW） AA9252MS-AT（AA9252MS-AW） AA9251HS-AT（AA9251HS-AW） AA9252HS-AT（AA9252HS-AW） AA9251MB-AT（AA9251MB-AW）AA9251HB-AT（AA9251HB-AW） AA9251MS-AT（AA9251MS-AW）
120*120*25：
AA1252MB-AT（AA1252MB-AW） AA1251HS-AT(AA1251HS-AW) AA1252MS-AT（AA1252MS-AW） AA1251MB-AT(AA1251MB-AW) AA1251MS-AT(AA1251MS-AW) AA1252HS-AT（AA1252HS-AW） AA1252HB-AT（AA1252HB-AW） AA1251HB-AT(AA1251HB-AW)
120*120*38：
AA1282UB-AT(AA1282UB-AW) AA1282HB-AT(AA1282HB-AW) AA1281HB-AT(AA1281HB-AW) AA1282US-AT(AA1282US-AW) AA1281UB-AT(AA1281UB-AW) AA1282MB-AT(AA1282MB-AW) AA1281HS-AT(AA1281HS-AW) AA1281MS-AT(AA1281MS-AW) AA1281US-AT(AA1281US-AW) AA1282HS-AT(AA1282HS-AW) AA1282MS-AT(AA1282MS-AW) AA1281MB-AT(AA1281MB-AW) AA1281LB-AT（AA1281LB-AW） AA1281LS-AT（AA1281LS-AW） AA1282DS-AT(AA1282DS-AW) AA1282LB-AT(AA1282LB-AW) AA1282DB-AT(AA1282DB-AW) AA1281DS-AT(AA1281DS-AW) AA1282LS-AT(AA1282LS-AW) AA1281DB-AT(AA1281DB-AW)
172*150*51：
AA1752HB-AT(AA1752HB-AW) AA1751MB-AT(AA1751MB-AW) AA1752MB-AT(AA1752MB-AW) AK1651MB-AT(AK1651MB-AW) AK1652HB-AT(Ak1652HB-AW) AK1651HB-AT(Ak1651HB-AW) AK1751MB-AT(AK1751MB-AW) AK1752HB-AT(AK1752HB-AW) AK1652MB-AT(AK1652MB-AW) AK1752MB-AT(AK1752MB-AW) AK1751HB-AT(AK1751HB-AW) AA1751HB-AT(AA1751HB-AW)
176*176*89：
AK1781HB-AT(AK1781HB-AW) AK1782HB-AT(AK1782HB-AW)
180*180*65：
AK1862HB-AT(AK1862HB-AW) AK1861HB-AT(AK1861HB-AW)
205*205*72：
AK2072HB-AT(AK2072HB-AW) AK2071HB-AT(AK2071HB-AW)
254*89：
AK2582HB-AT(AK2582HB-AW) AK2581MB-AT(AK2581MB-AW) AK2582MB-AT(AK2582MB-AW) AK2581HB-AT(AK2581HB-AW)
280*280*89：
AK2882HB-AT(AK2882HB-AW) AK2881HB-AT(AK2881HB-AW) AK2882MB-AT(AK2882MB-AW) AK2881MB-AT(AK2881MB-AW)
