ADDA风扇AB1224UB-Y01

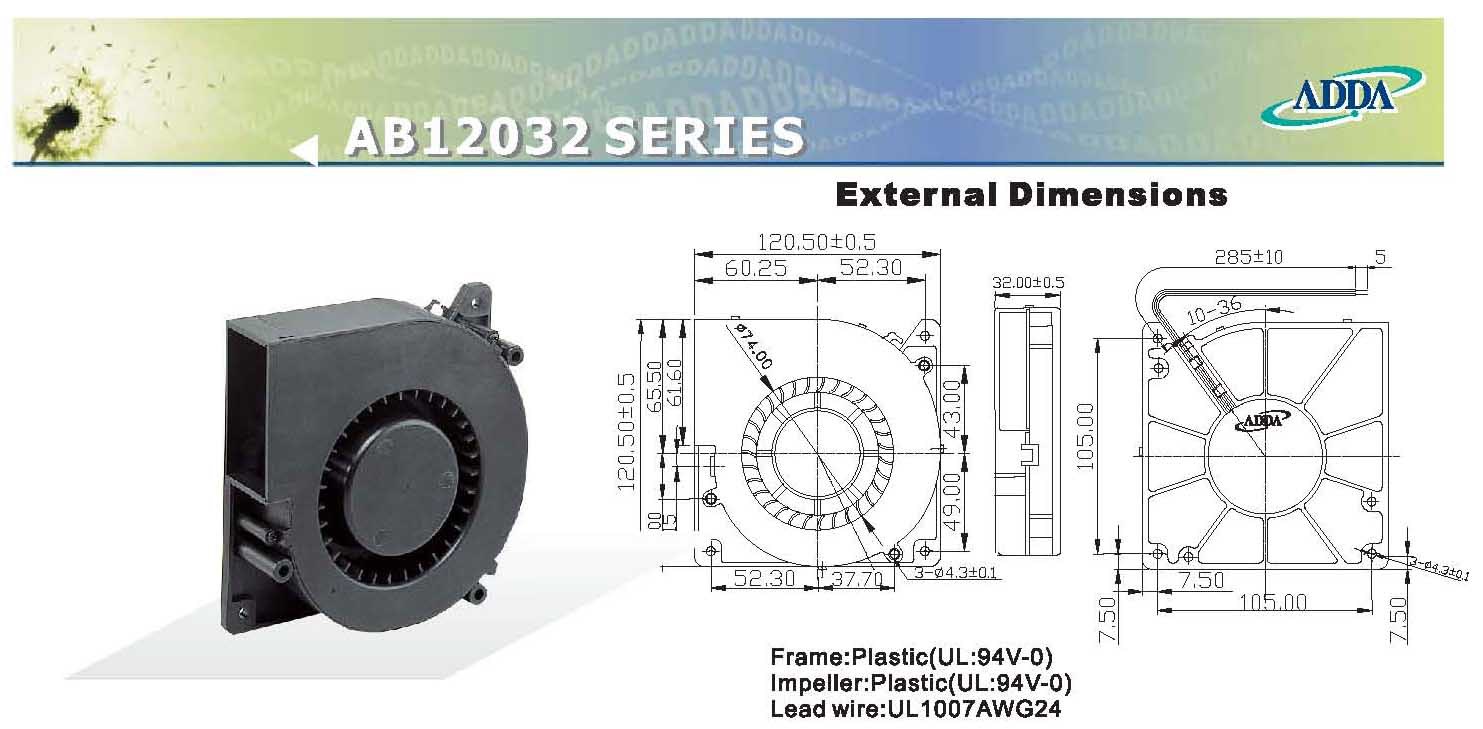

一、ADDA风扇AB1224UB-Y01产品尺寸

二、产品型号

Fan =BLOWER

Size =120x120x32

Speed =

Flow =

Noise =

Bearing type: ◎=Ball ※=Sleeve ○=1B1S ●=Hypro Bearing
Frame Size	Model No	Bearing	Volt. (VAC)	Current (A)	Speed (rpm)	Air Flow (CFM)	Pressure (InAq)	Noise (dB/A)	PDF
120x120x32	AB1212DB-Y0B	◎※●	12	0.26	1800	21.085	0.418	46.6
120x120x32	AB1212LB-Y0B	◎※●	12	0.41	2100	25.196	0.624	48.0
120x120x32	AB1212MB-Y0B	◎※●	12	0.53	2300	28.201	0.889	49.0
120x120x32	AB1212HB-Y0B	◎※●	12	0.79	2600	31.206	1.221	55.0
120x120x32	AB1212UB-Y0B	◎※●	12	0.94	2800	33.623	1.448	53.3
120x120x32	AB1212XB-Y0B	◎	12	1.12	3100	36.323	1.602	57.0
120x120x32	AB1224DB-Y0B	◎※●	24	0.19	1800	21.085	0.418	46.6
120x120x32	AB1224LB-Y0B	◎※●	24	0.25	2100	25.196	0.624	48.0
120x120x32	AB1224MB-Y0B	◎※●	24	0.36	2300	28.201	0.889	49.0
120x120x32	AB1224HB-Y0B	◎※●	24	0.43	2600	31.206	1.221	55.0
120x120x32	AB1224UB-Y0B	◎※●	24	0.50	2800	33.623	1.448	53.3
120x120x32	AB1224XB-Y0B	◎	24	0.68	3100	36.323	1.602	57.0
120x120x32	AB1248DB-Y0B	◎※●	48	0.09	1800	21.085	0.418	46.6
120x120x32	AB1248LB-Y0B	◎※●	48	0.16	2100	25.196	0.624	48.0
120x120x32	AB1248MB-Y0B	◎※●	48	0.18	2300	28.201	0.889	49.0
120x120x32	AB1248HB-Y0B	◎※●	48	0.22	2600	31.206	1.221	55.0
120x120x32	AB1248UB-Y0B	◎※●	48	0.29	2800	33.623	1.448	53.3

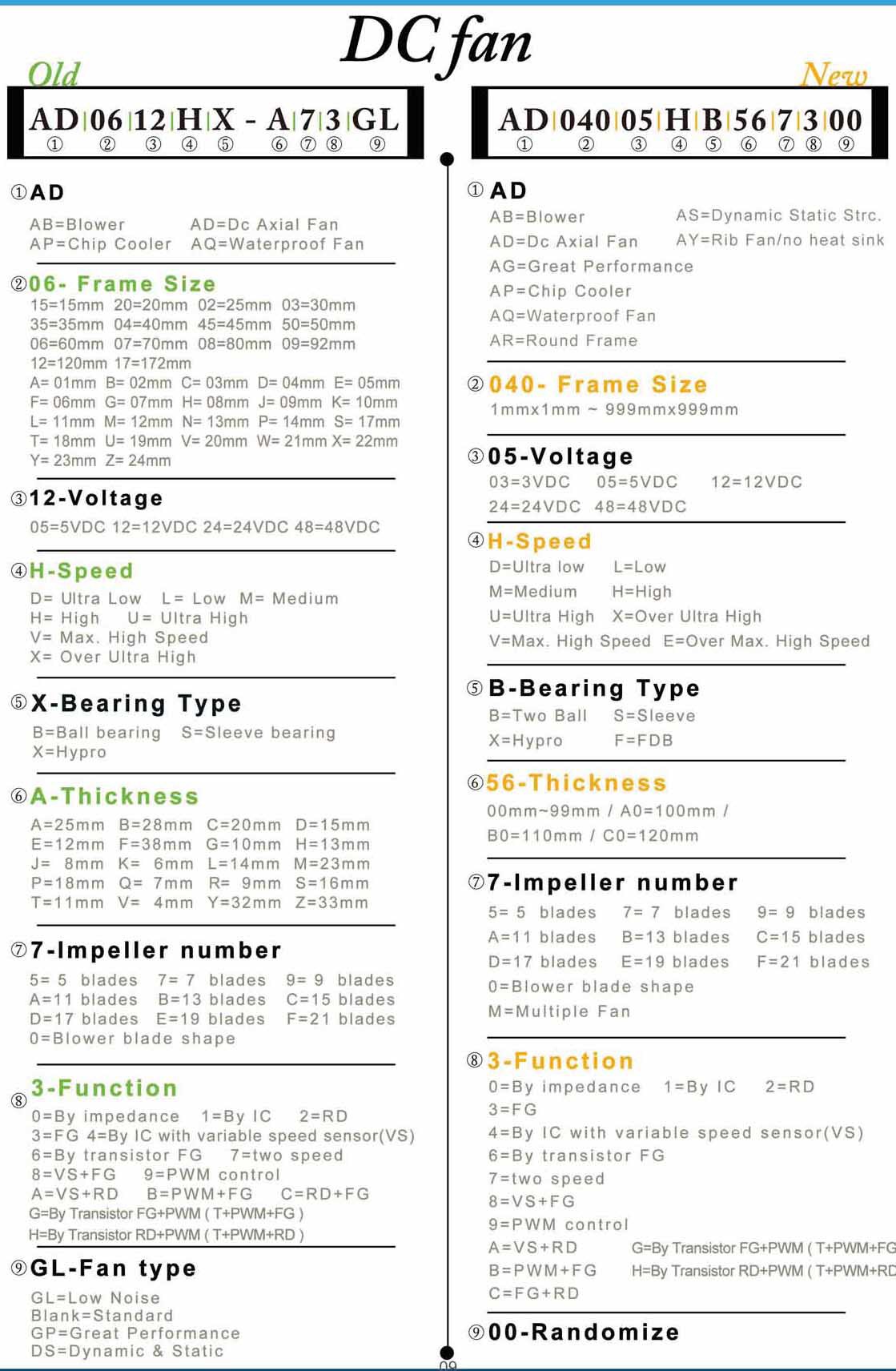

三、ADDA直流风机命名规则

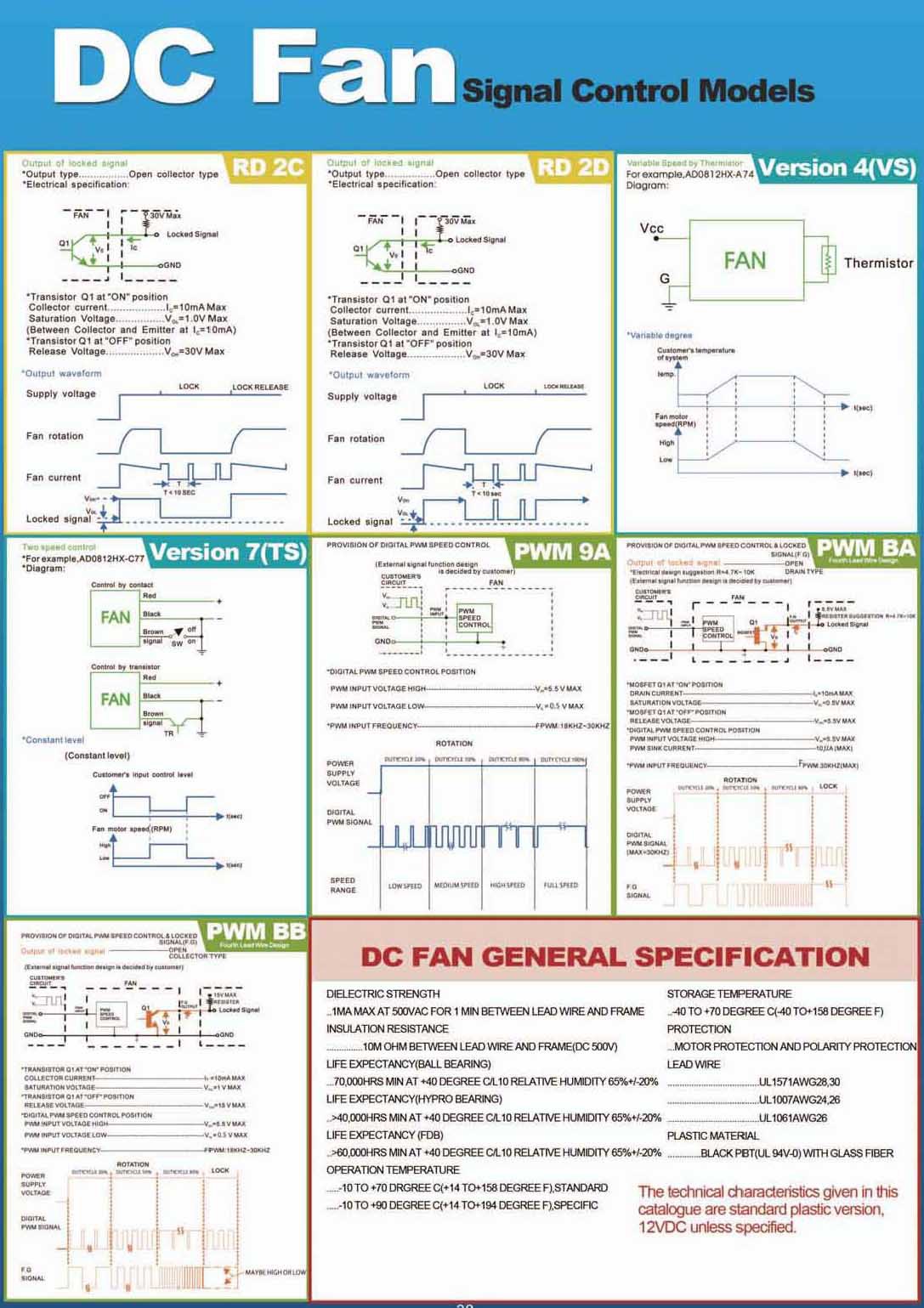

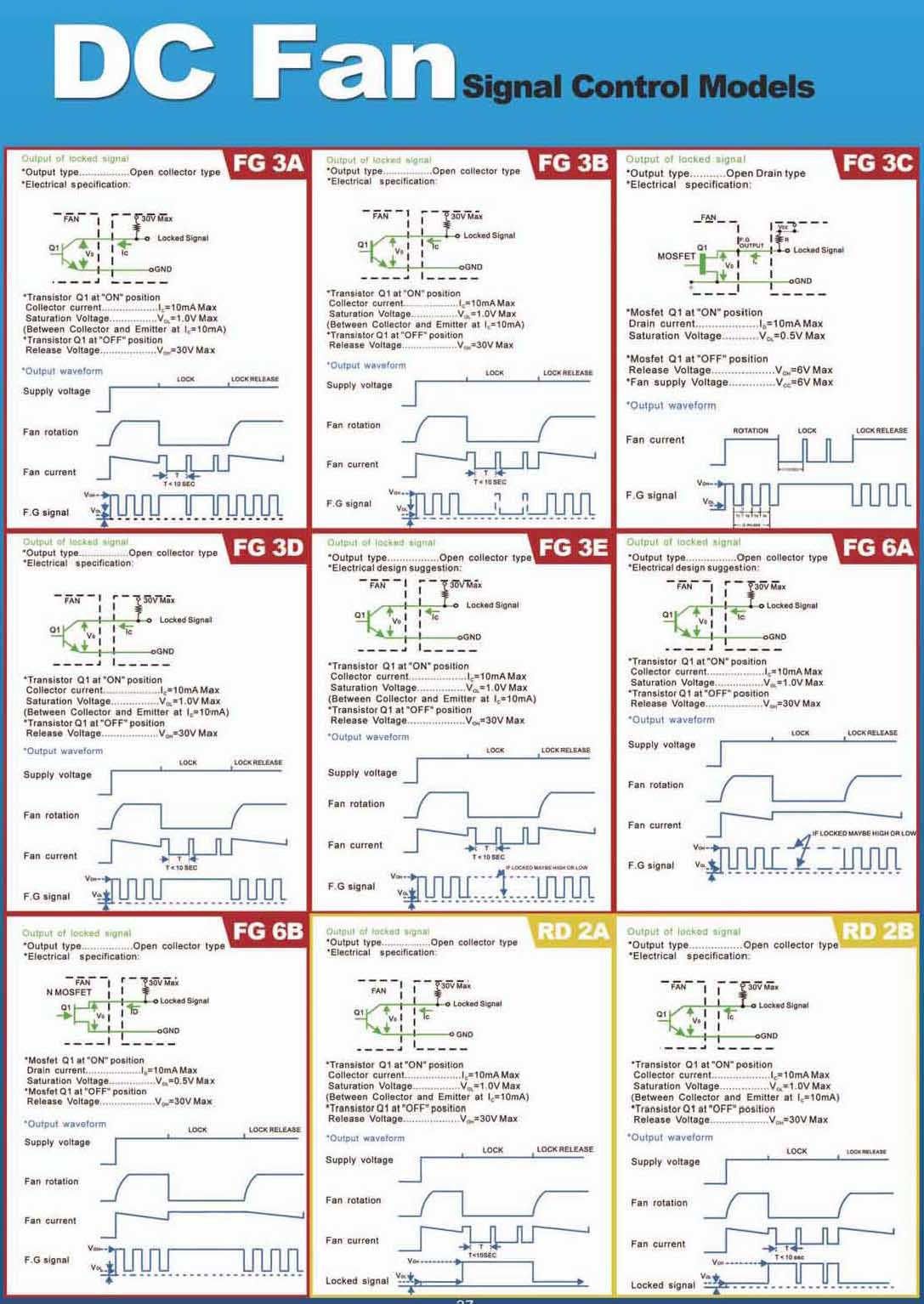

四、ADDA直流风机特殊功能电路图




五、ADDA鼓风机常备现货型号：

ADDA鼓风机

30*30*10：

AB0305MB-GA3 AB0312HB-GA3 AB0312MB-GA3 AB0305MB-GA0 AB0312MB-GA0 AB0312HB-GA0 AB0312HB-G70 AB0312MB-G70

35*35*07：

AB3505MX-QB0(AB3505MB-QB0) AB3505LX-QB0(AB3505LB-QB0) AB3512MX-QB0(AB3512MB-QB0) AB3512lX-QB0(AB3512lB-QB0)

35*35*10：

AB3505MX-GA0(AD3505MB-GA0) AB3505HX-GA0(AD3505HB-GA0) AB3505LX-GA0(AD3505LB-GA0) AB3512HX-GA0(AD3512HB-GA0) AB3512MX-GA0(AD3512MB-GA0) AB3505MX-GA0(AD3505MB-GA0)

45*45*07：

AB4505MB-QA0 AB4505HB-QA0 AB4512MB-QA0 AB4505LB-QA0 AB4512LB-QA0 AB4512HB-QA0

45*45*10：

AB4512LB-GD1（AB4512LB-GD0） AB4512MB-GD1（AB4512MB-GD0） AB4512HB-GD0（AB4512HB-GD1）AB4505MB-GD1 AB4505LB-GD1

50*50*09：

AB0505LB-RB1 AB0505MB-RB1

50*50*15：

AB05012MX150100

50*50*20：

AB5012HB-C01 AB05012LB200300 AB5012MB-C01 AB5012LB-C01 AB05012DB200300 AB05012MB200300   AB05012HB200300 AB05012UB200300

51*51*15:

AB05105LB150300 AB05105MB150300 AB05105UB150300 AB05112MB150300 AB05112LB150300 AB05105HB150300 AB05112HB150300 AB05112UB150300 AB05124HB150300

60*60*15:

AB0612UB-D03

60*60*25:

AB06012LB250300 AB06012DB250300 AB06012MB250300

70*70*12:

AB7012HB-E01 AB7012LB-E01

70*70*25:

AB07012HB250300 AB07012LB250300 AB07012MB250300 AB07012UB250300

75*75*30:

AB7524HB-W01（原AD7524HB）AB7512UB-W01（原AD7512UB）AB7512HB-W01（原AD7512HB）AB7524LB-W01（原AD7524LB）AB7524MB-W01（原AD7524MB）AB7524DB-W01（原AD7524DB）AB7512DB-W01（原AD7512DB）AB7512LB-W01（原AD7512LB）AB7512MB-W01（原AD7512MB）AB7524UB-W01（原AD7524UB）

94*94*33:

AB0924LB-Z01 AB0912LB-Z01 AB0924MB-Z01 AB0912UB-Z01 AB0912MB-Z01 AB0912HB-Z01 AB0912DB-Z01 AB0948HB-Z01 AB0924HB-Z01

120*120*32:

AB1224UB-Y01 AB1212LB-Y01 AB1212HB-Y01 AB1248HB-Y01 AB1248DB-Y01 AB1224XB-Y01 AB1224HB-Y01 AB1224LB-Y01 AB1248UB-Y01 AB1248MB-Y01 AB1224DB-Y01 AB1248LB-Y01 AB1224MB-Y01 AB1212UB-Y01 AB1212DB-Y01 AB1212MB-Y01 AB1212XB-Y01

若需要了解ADDA风扇AB1224UB-Y01更详细的信息，请联系：
