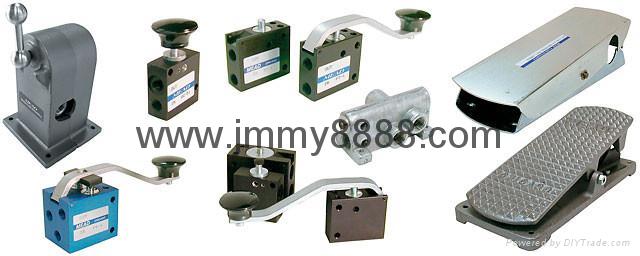

MEAD手动阀

Model No.

Actuation Type

Flow Pattern

Ports

Flow

Pre-Travel

Over Travel

Force Reqd @ 100 PSI

FC-1

Cam Button

3-way NC

1/8" NPT

0.13Cv

3/64"

None

17 lbs

FC-2A

Cam Button

3-way NO

1/8" NPT

0.32Cv

1/8"

1/8"

11 lbs

FC-51

Cam Button

3-way NC

1/8" NPT

0.81Cv

1/8"

1/8"

7 lbs

FC-52

Cam Button

3-way NO

1/8" NPT

0.68Cv

1/8"

1/8"

5 lbs

3C-1

Cam Button

3-way NC

1/4" NPT

0.48Cv

1/16"

None

9 lbs

FC-101

Cam Button

3-wayNC

3/8" NPT

1.15Cv

1/16"

None

30 lbs

FT-1

Fingertip Lever

3-way NC

1/8" NPT

0.13Cv

1/4"

None

4 lbs

FT-2A

Fingertip Lever

3-way NO

1/8" NPT

0.32Cv

7/8"

1/8"

2 lbs

FT-4

Fingertip Lever

4-way

1/8" NPT

0.16Cv

7/8"

None

3 lbs

FT-101

Fingertip Lever

3-way NC

3/8" NPT

1.15Cv

3/16"

None

8 lbs

PC-51

Palm Button, Spr. Return

3-way NC

1/8" NPT

0.81Cv

1/8"

1/8"

7 lbs

PC-51A

Palm Button Detent

3-way NC

1/8" NPT

0.81Cv

1/8"

1/8"

3 lbs

PC-52

Palm Button

3-way NO

1/8" NPT

0.68Cv

1/8"

1/8"

5 lbs

4B-1

Hand

4-way

1/4" NPT

0.48Cv

None

None

5 lbs

4W-1

Foot Treadle

4-way

1/4" NPT

0.48Cv

None

None

18 lbs

201

Foot Treadle

3-way

3/8" NPT

1.15Cv

None

None

7 1/2 lbs
