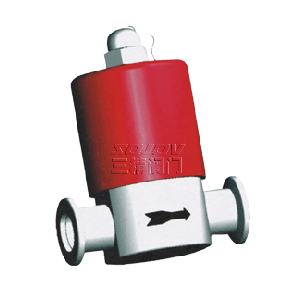

GDC-5型电磁高真空挡板阀是连接在真空管路上，用来接通或截止真空系统中的气流，或作充气阀用。当通电时将P、A端管路接通、断电时切断P、A端管路，保持P端真空系统的真空度。适用介质为纯净空气和非腐蚀性气体。 |
|
| |
| ■ |
GDC-5型电磁高真空挡板阀
Electro High Vacuum Flapper Valve |
| |
| |
■ |
GDC-5 electro
high vacuum flapper valve is mounted in vacuum pipeline to put
through or cut off the airflow in vacuum system, or used as a
charging vale. When power is connected, pipes at P and A will be
put through, and when power is disconnected, pipes at P and A will
be cut off, to keep the vacuum system at P vacuum. Applicable
medium can be pure air and noncorrosive gases. |
|
| |
| ■ |
GDC-5型电磁高真空挡板阀主要技术性能
Main Technical Performance |
| |
| |
■
■
■ |
| 公称通径：Nominal
Diameter |
5mm |
| 适用范围：Applicability |
105～1.3×10-4Pa |
| 阀门漏率：Valve Leak
Rate |
≤1.3×10-4Pa.L/S. |
| 适用温度：Applicable
Temperature |
-30～＋50℃ |
| 线围温升：Coil Temperature
Rise |
≤65℃ |
| 电源电压：Mains
Voltage |
220V/50Hz |
| 安装方向：Mounting
Direction |
垂直或水平 |
|
|
| |
| CONSTRUCTION FIGHTS（mm） |
| |
| ■ |
外形及连接尺寸（mm）（GB4982）
Overall and Connection Dimensions（mm） |
|
